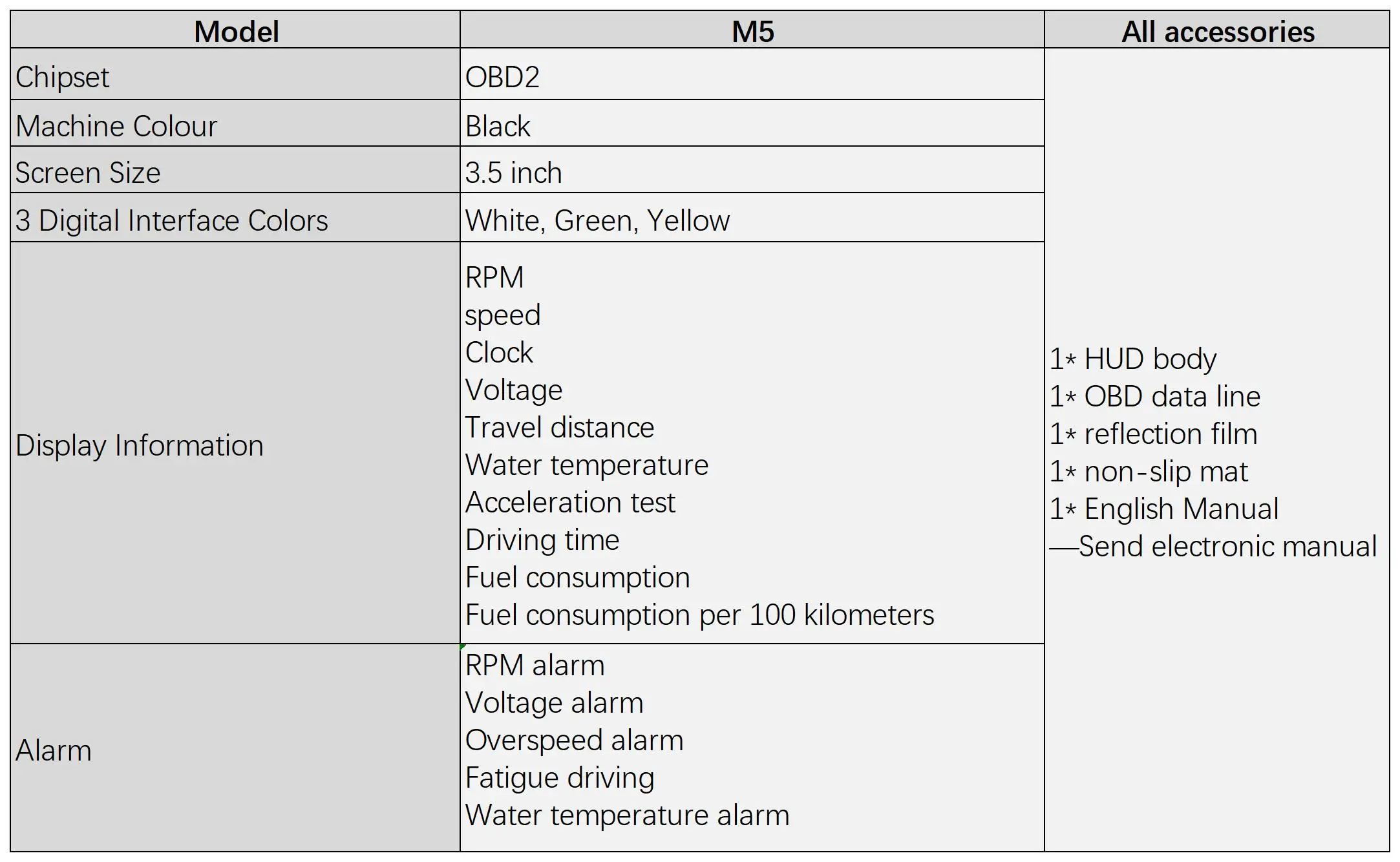

Car Electronics Accessories>>>Automobiles & Motorcycles
Brand Name WYOBD
Origin CN(Origin)
Wire or Wireless wired
Size Name 86x37x16mm
Product Name head up display
Model M5
Material Plastic, electronic componets
Cable Length 1.8M
Installation Connect with OBD Port
Compatiable with Most gasoline cars after 2007
Warrenty 1 Year

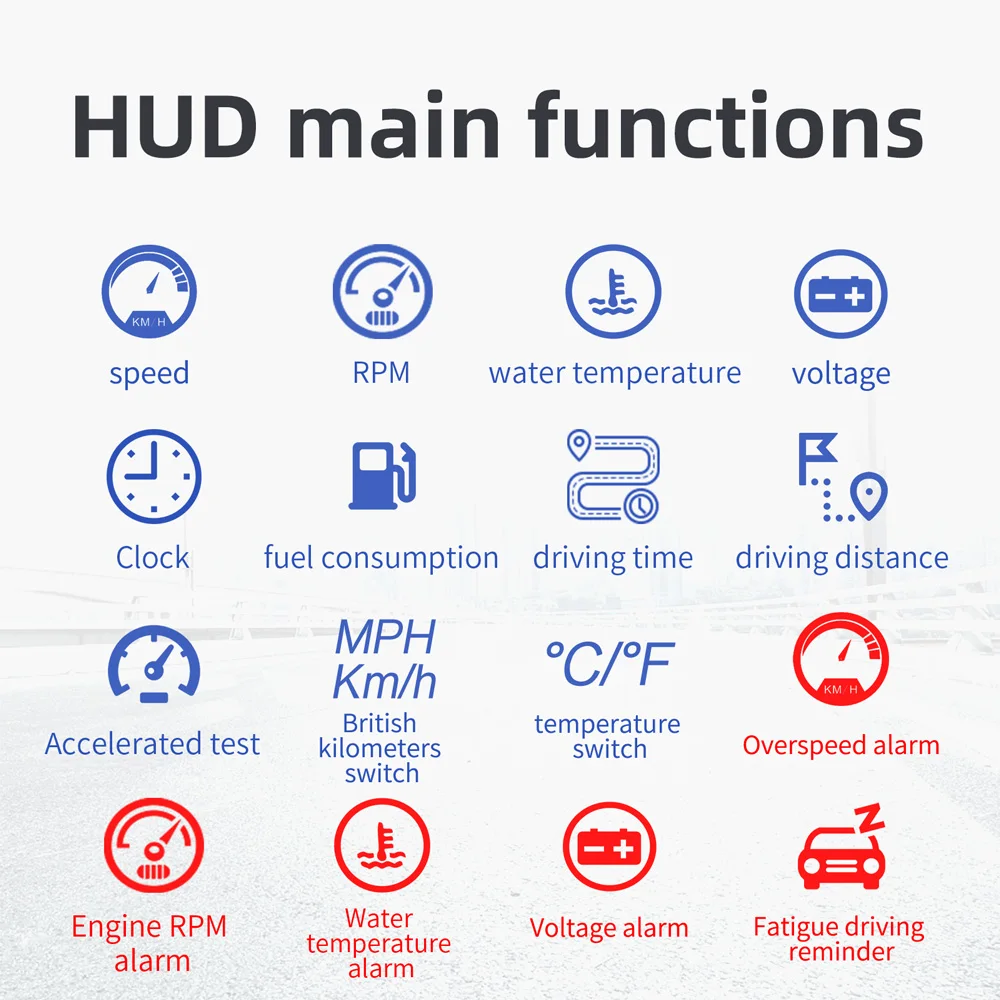

Function 1 Speed
Function 2 Water temperature
Function 3 Voltage
Function 4 Engine
Light sensor adjust the brightness according to the environment
Speed unit MPH- mile, KM/H- kilometer
External Rohs, CE, FCC
Color Name
WYOBD M5 Car HUD Head Up Display OBD2
Notice:
1.Car production year (before 2008 are incompatible with HUD) 2.If you are interested in our products, and the model is before 2008, or you don't know whether your car can be used, you can enter the store and contact customer service.The original car is not damaged, the smart is started to stop with the car； HUD works: Receive the data from the car and display it on the machine.

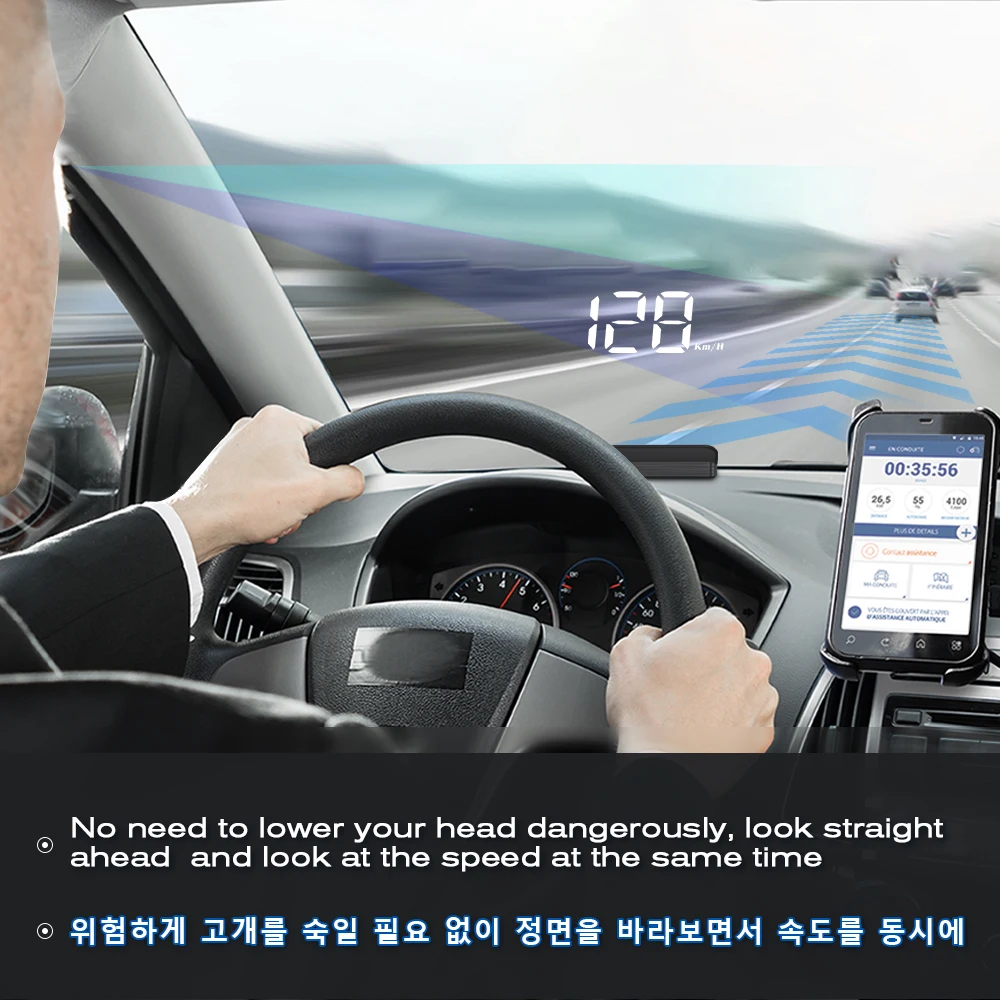

Car SpeedometerDisplays Driving Datas On The Front Windshield when you are driving fast
Water Temperature AlarmThe normal water temperature of a car engine while driving is 80°C to 95°C.Don't let's your car engine too hot.

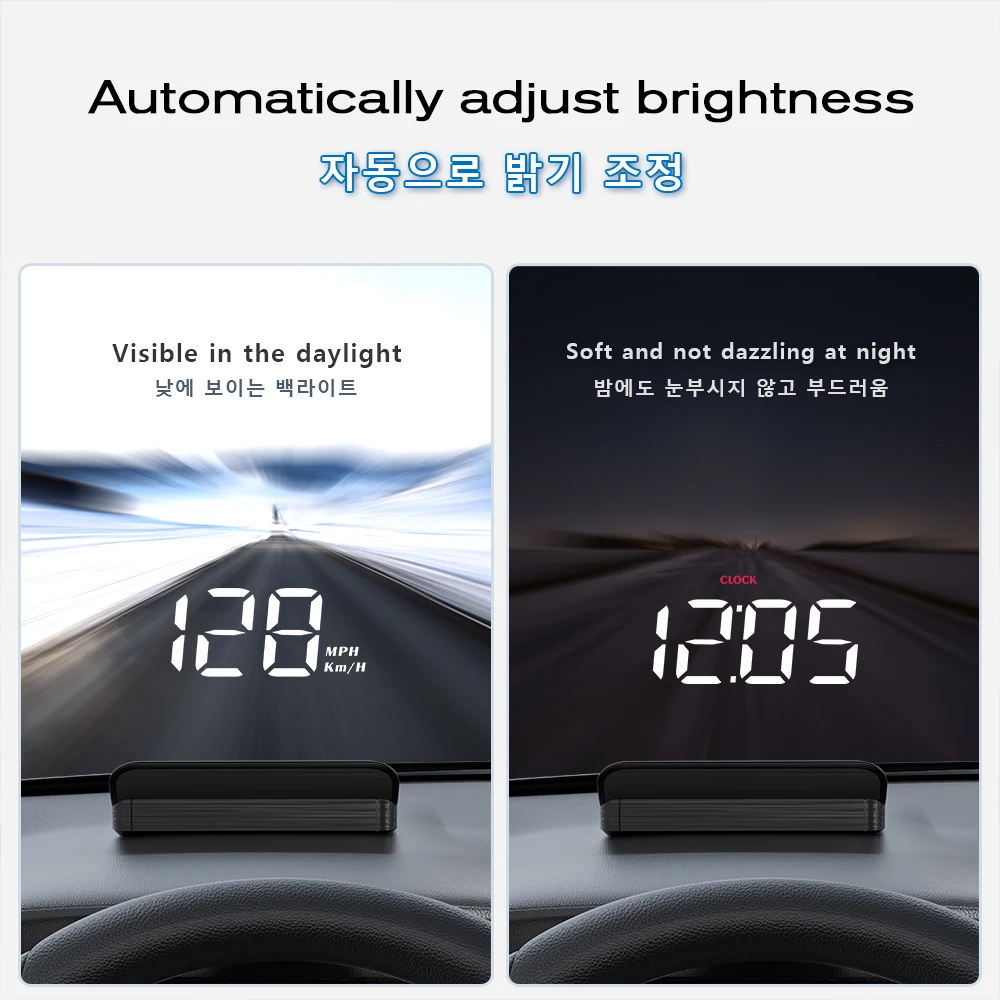

Light SensorAutomatically adapt to the light sensitivity, and the brightness is changed by the environment.
Products Details

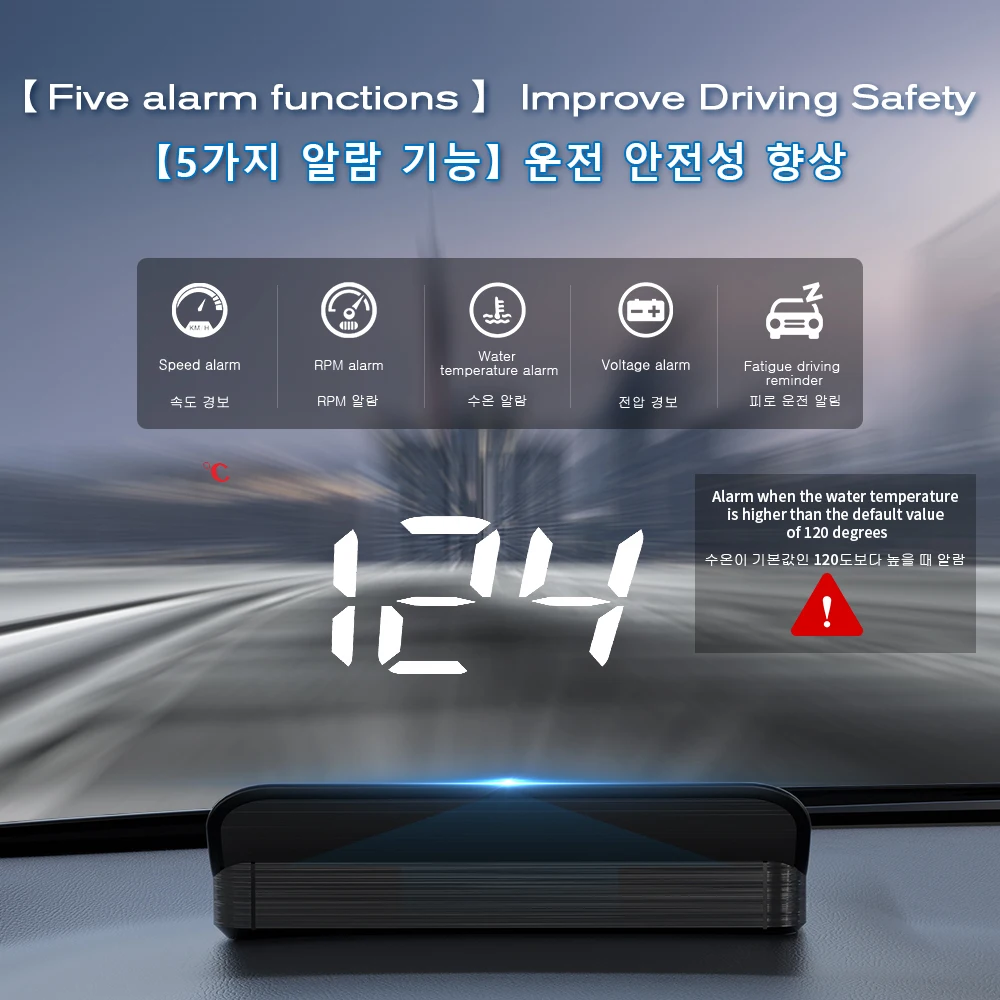

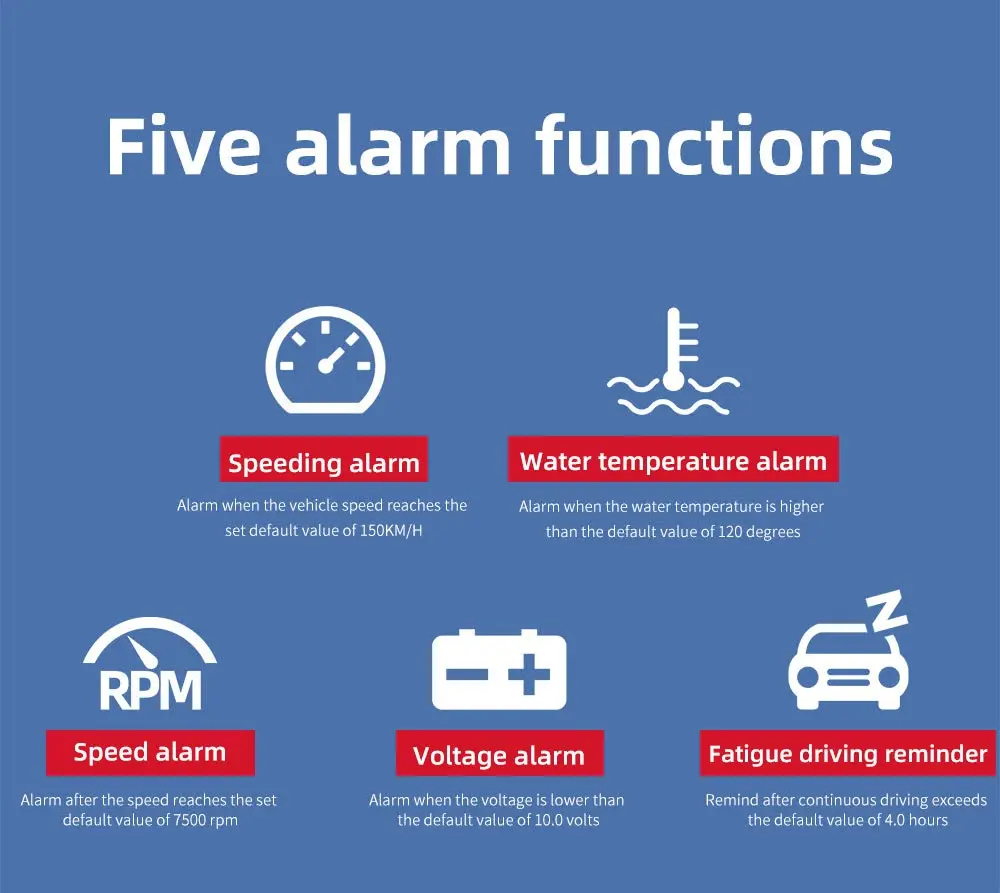

5 Alarm Functions
1.RPM alarm: alarm after the speed reaches the set default value of 7500 rpm.2.Overspeed alarm: alarm when the vehicle speed reaches the set default value of 150KM/H.3.Voltage alarm: alarm when voltage is lower than the default value of 10.0 volts. 4.Fatigue driving: Reminder after continuous driving for more than 4.0 hours by default.5.Water temperature alarm: when the water temperature is higher than the default value of 120 degrees.

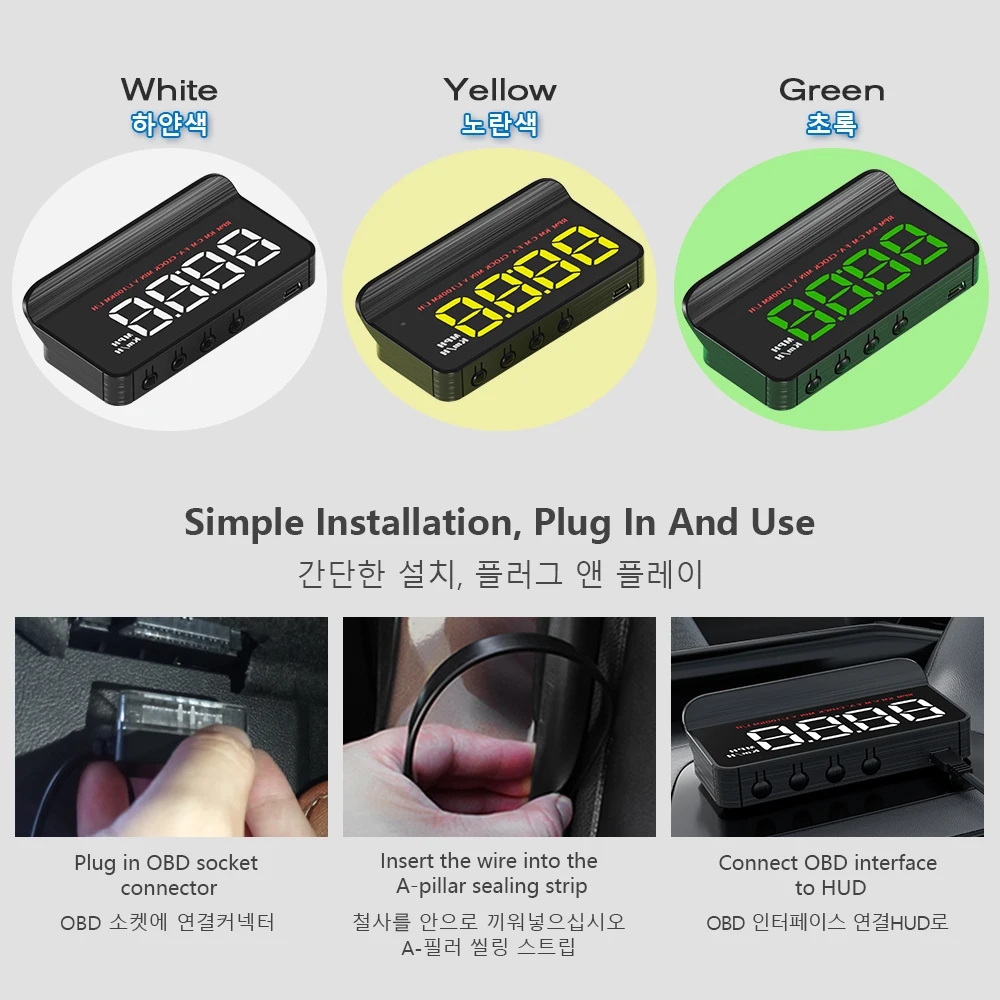

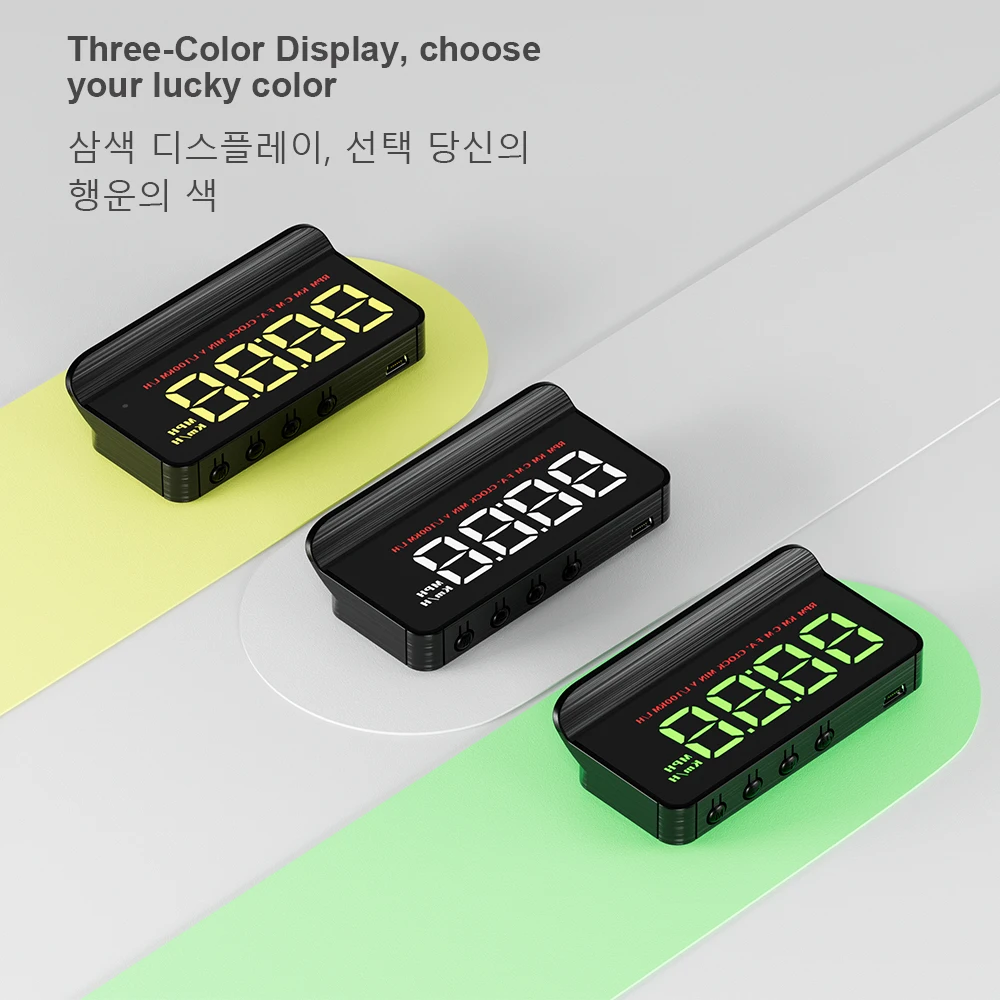

Three Color Interface Model

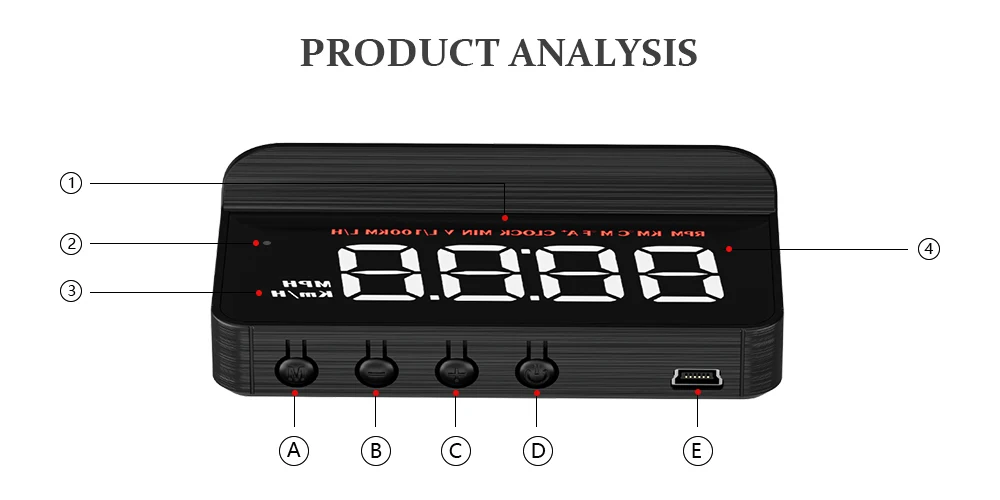

How to use it
A: Short press‘M’Switching voltage,Water temperature,Speed,Enter the setting mode to switch the menu value and parameter value.Long press‘M’Vertical long Press in 5 seconds: enter into setting menu(menu 0-14),after finish adjustment,vertical long press in 3 seconds to save it and exitB: Short press ‘-’Decrease the menu or parameter value after entering the setting.Long press‘-’Turn off the buzzer,press and hold again for 3seconds to turn on the buzzer.
C: Short press‘+’Increase the menu or parameter value after entering the setting.Long press‘+’ The lights will be all on,and the fault code is eliminated,long press again to exit,all on.
D: Power switch:Long press to turn off,Long press again to turn on.
E: OBD port

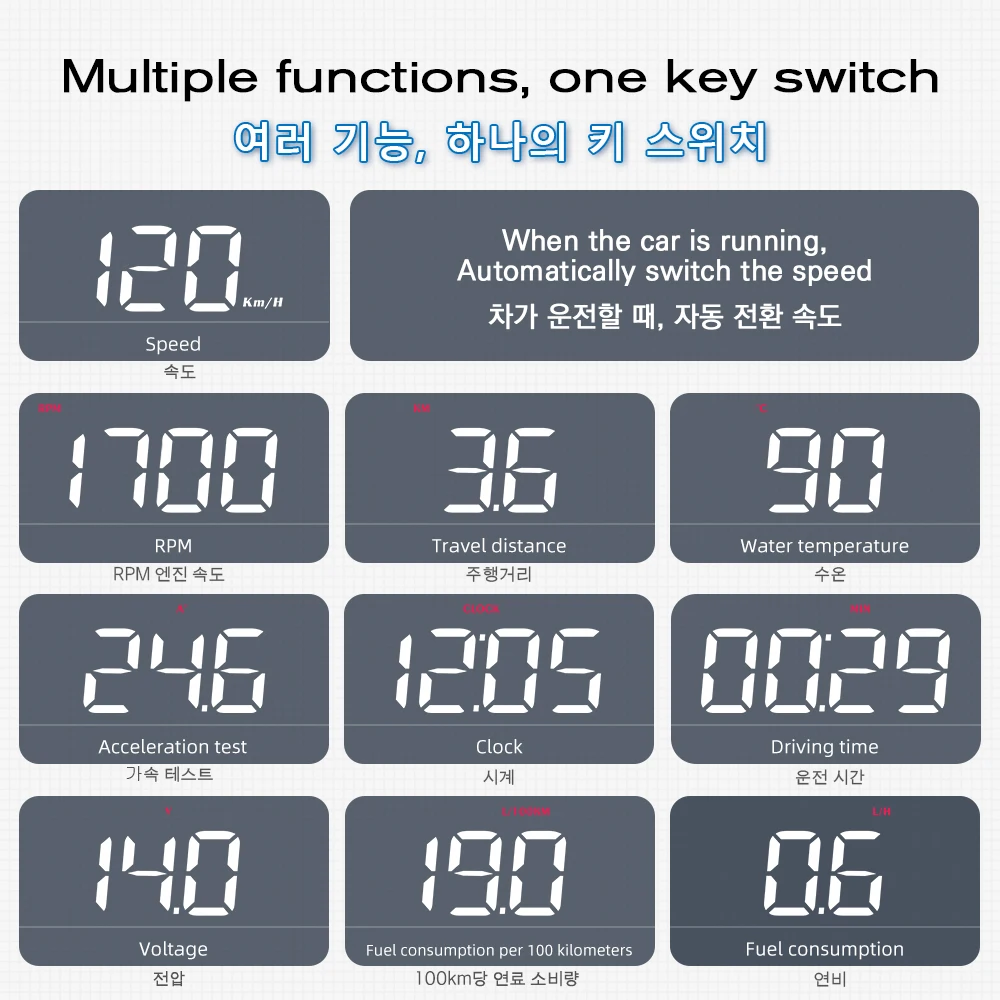

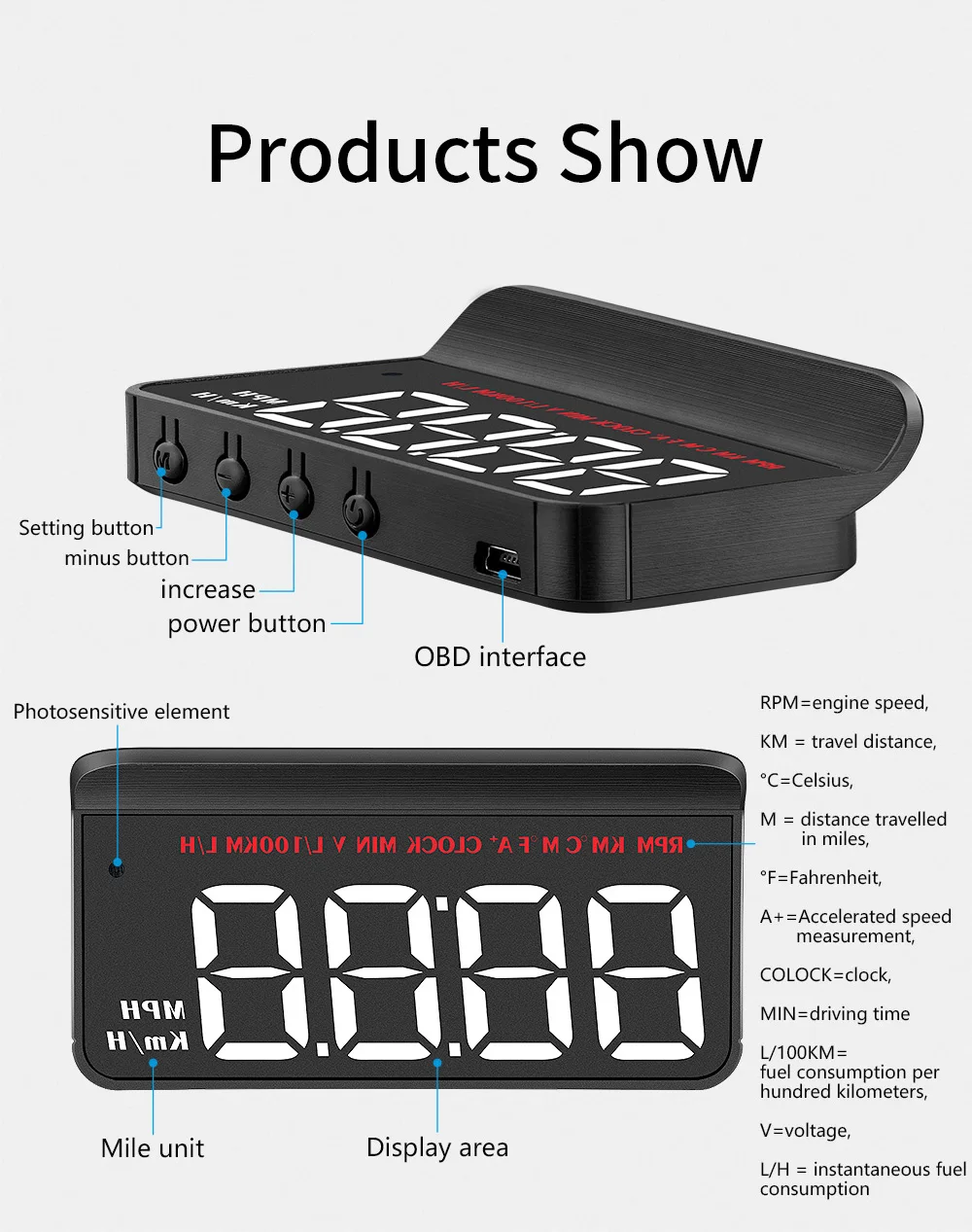

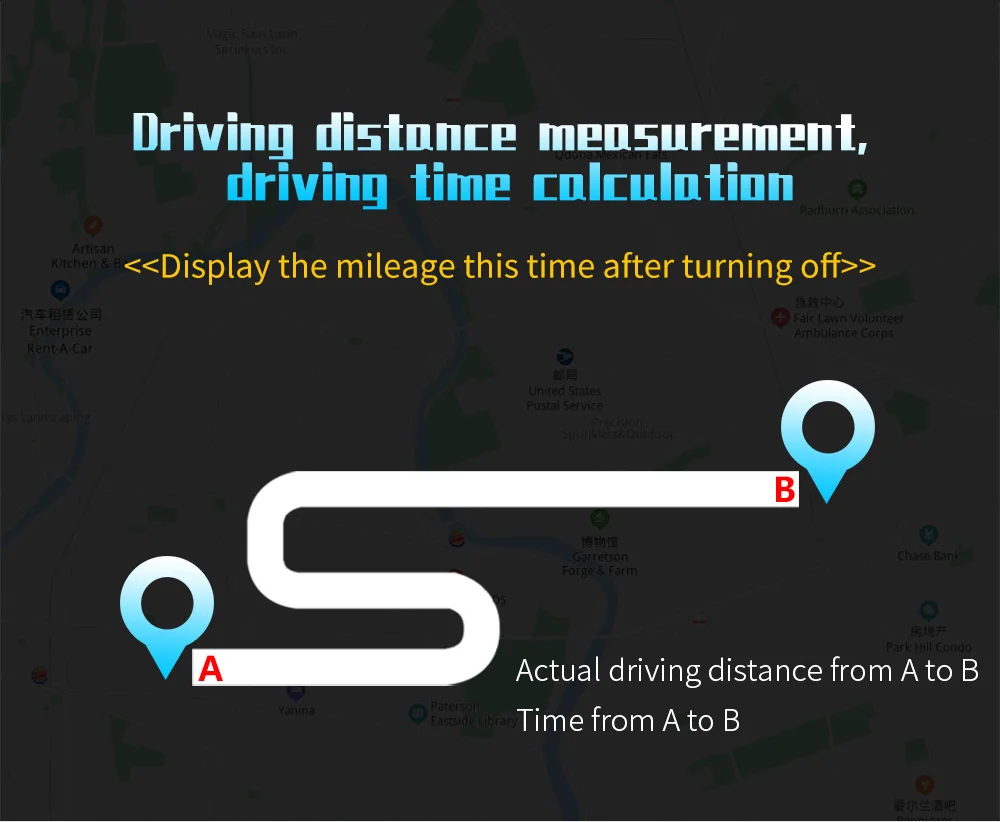

RPM=the rotational speed of the engine.KM= Travel distance℃= Water temperature in CelsiusM= Distance travelled miles°F= FahrenheitA⁺= Accelerated speed measurementCOLOCKMIN= Driving timeV =Battery VoltageL/100KM= Fuel consumption Liter/100kilometersL/H =fuel consumption Liter/hour Lightsensor KM/H= Kilometers/hour, MPH= Miles/hourMultifunction display
Automatic switchAuutomatically turns on and off as the car starts and stops.
Buyer Shows
HUD installation1. Ensure your vehicle is OBD|| compatible or EOBD.A. Check around the area under the steering wheel for an OBD plug.B. Contact your vehicle manufacturer or search online.C. Open the bonenet and look for a OBD|| compatible sticker(this is NOT on all OBD|| compatible cars,therefore isn't deciding factor)

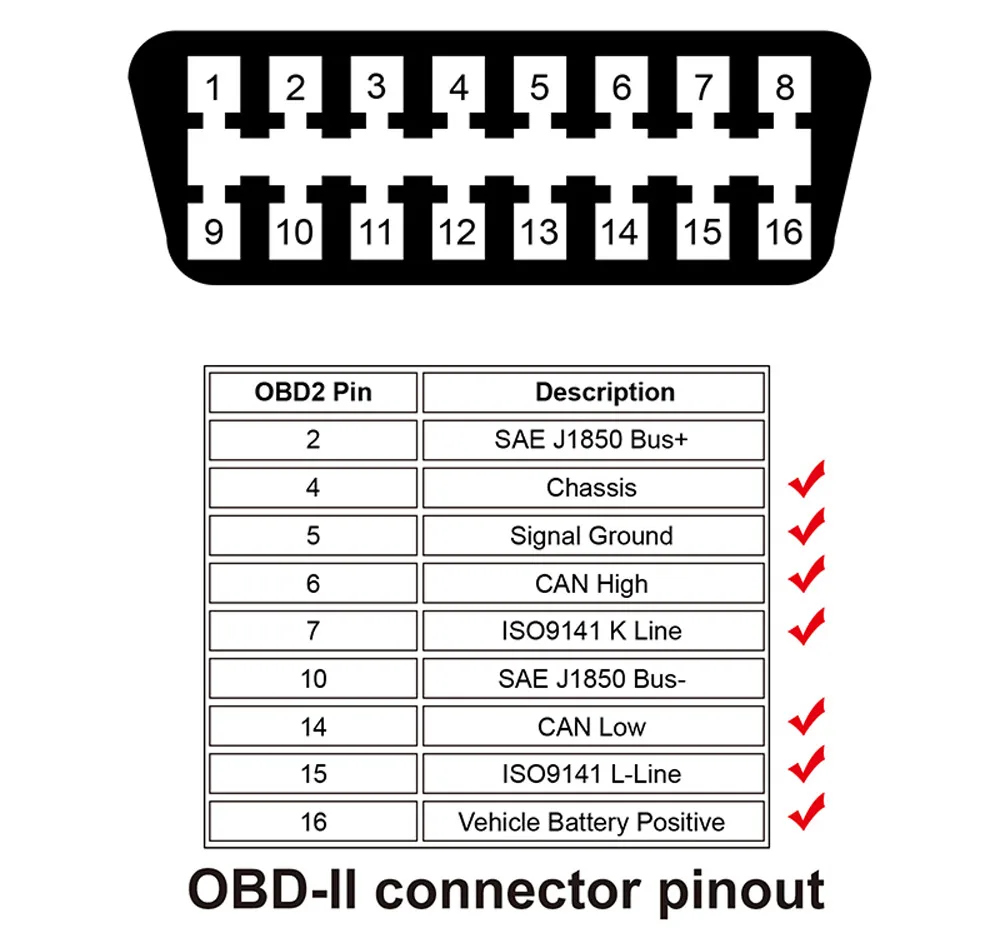

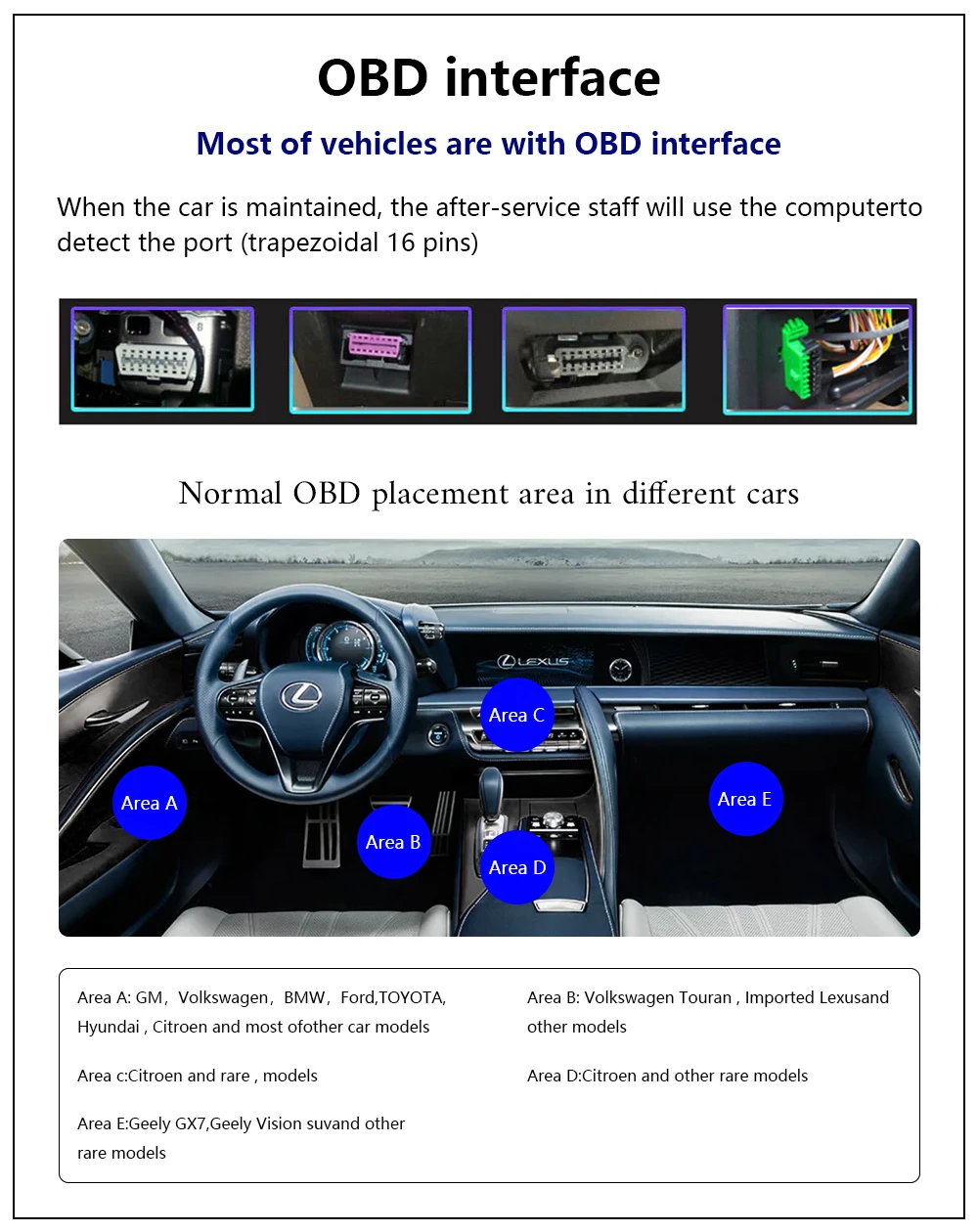

2. Locate the 16 pin diagnostic link (see picture ).This is usually located in the area under the steering wheel.

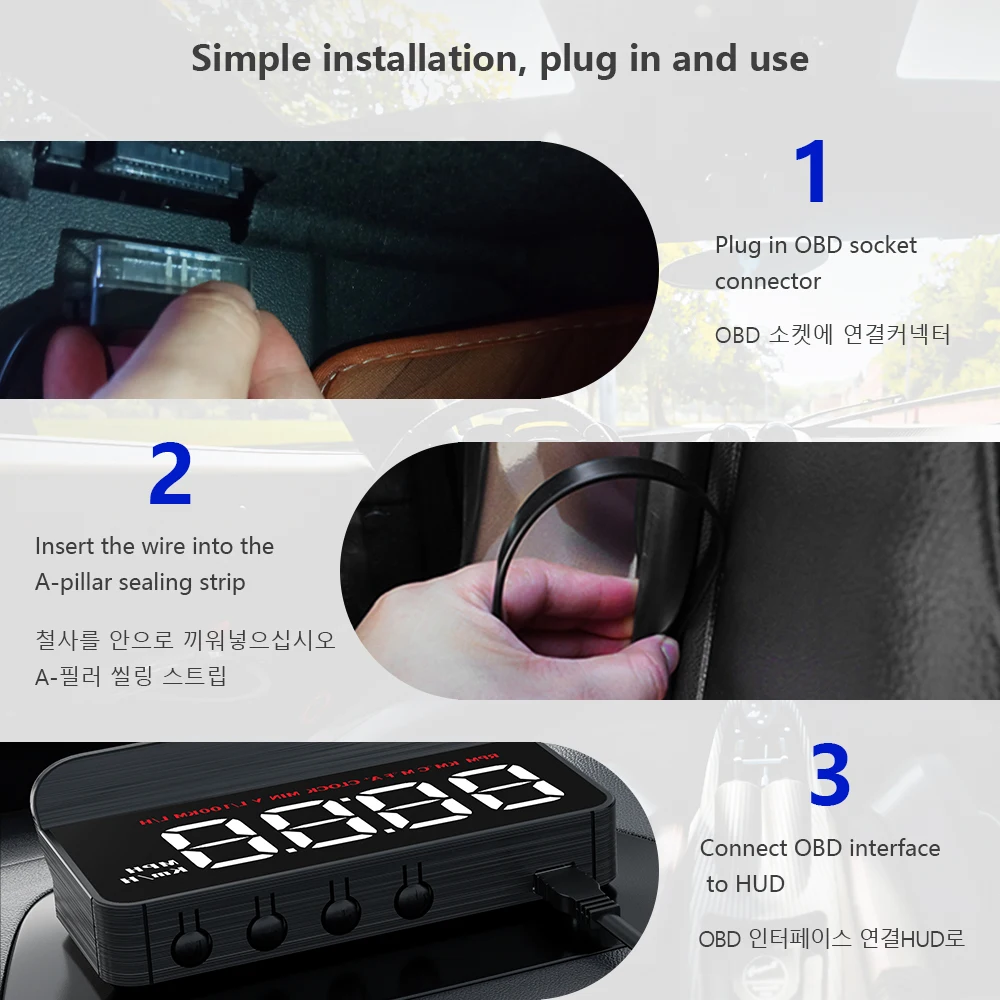

Detail steps:1,put non-slip mat;2,put HUD on non-slip mat;3,connect OBD cable with car OBD2 interface;4,connect the other side of OBD2 cable with HUD ,and then start the engine;5,stick the reflection on windshield.

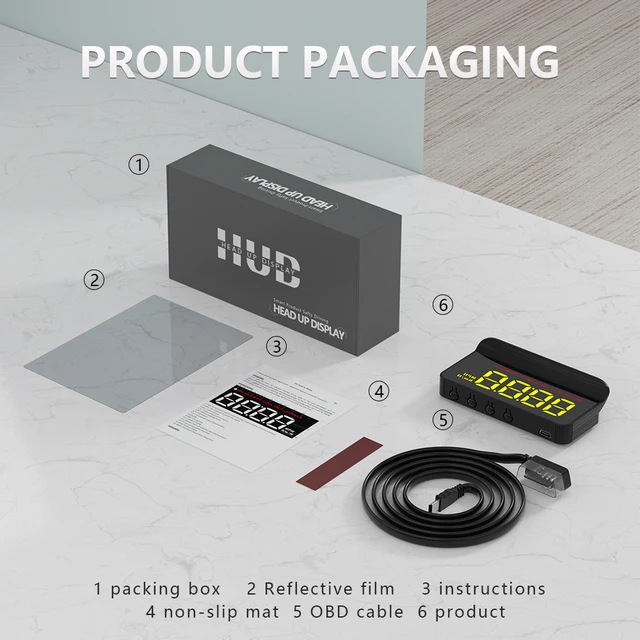

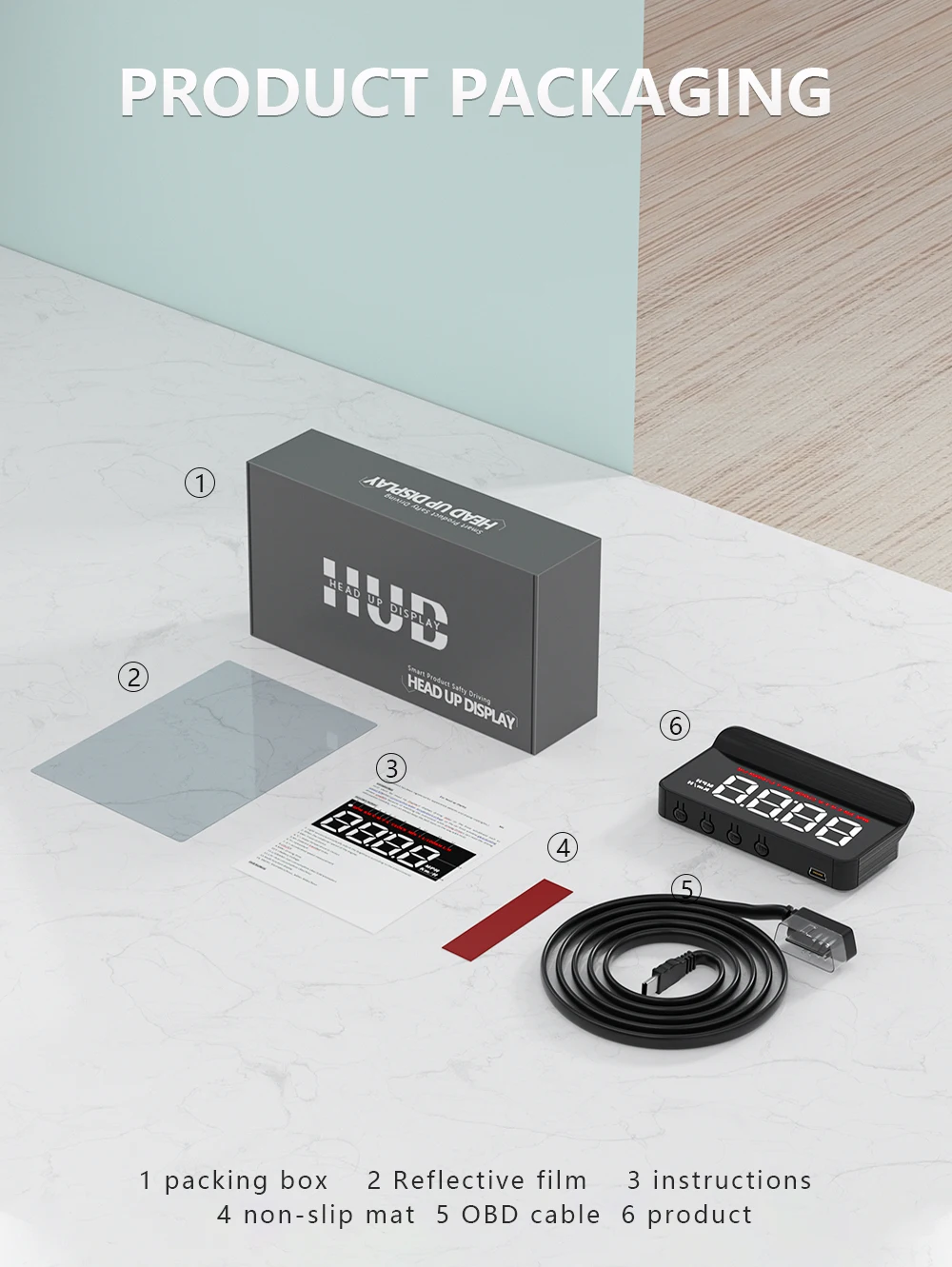

Product Accessories：1*packing box 1*reflective film 1*instruction1*non-slip mat 1*OBD cable 1*product
FAQ:1.Can I want the speed unit in miles?You can adjust miles or kilometers.2. Can my car use this machine?If you don't know whether the machine can be used in your car, you can contact customer service at any time, and we will answer you patiently.3.May l be able to see my local time on the machine?Of course, you can enter the setting item to adjust the time to your local time,in 24-hour format.4. What kind of cable is the M5 machine and how is it different from the M1?M5 machine is OBD cable, M1 machine is GPS system using USB cable.5. What should I do if the machine or cable I received is not the model I ordered?Dear friends, if you encounter this situation, you can contact customer service at any time, we will solve it for you, or reissue a machine for you for free.
