Surveillance Cameras>>>Security & Protection
Brand Name MISECU
Supported Operating Systems Windows 10
Supported Operating Systems Windows 8
Supported Operating Systems Windows 7
Supported Operating Systems Mac OS
Supported Operating Systems windows xp
Origin CN(Origin)
High Definition 5.0 Megapixels
Lens (mm) 2.8-8mm
Lens (mm) 3.6mm
Style Dome Camera
Connectivity IP/Network Wired
Installation Ceiling
Installation Wall Mounted
Minimum Illumination(Lux) color: 0.01, black/white:0.001
Scene Indoor
Color Night Vision No
Megapixels 5MP
Special Features Waterproof / Weatherproof
Storage None
Video Compression Format H.265
App name Other
TF Card None
IR Distance(m) 20-25m
Digital Zoom NONE
Power Supply(V) DC12V or 48V POE
Certification CE

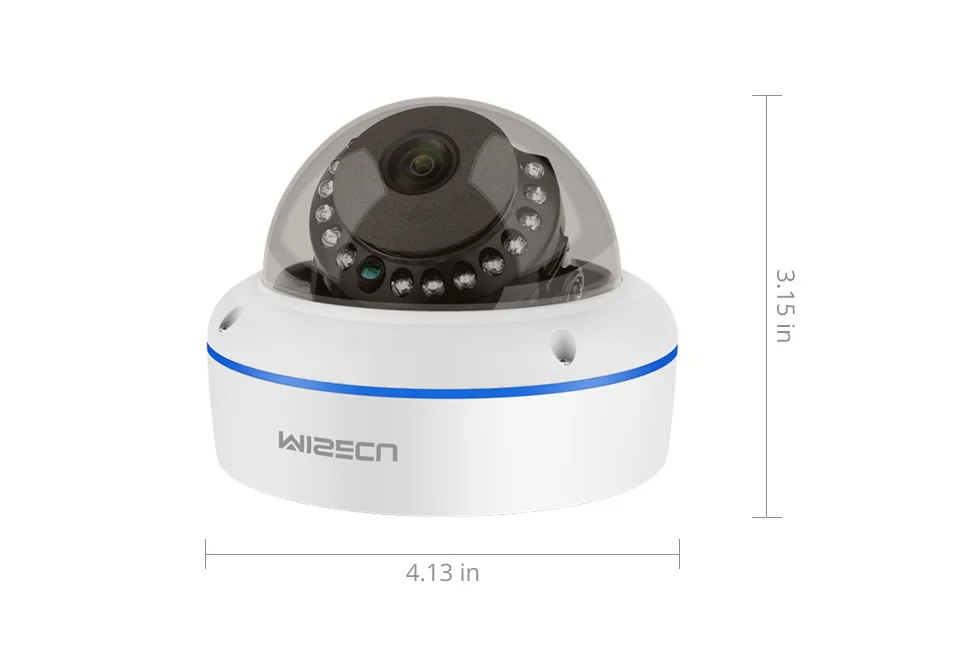

Dimensions (L x W x D)(mm) mm*mm
Audio Output None
Power Consumption(W) 3-4W
Color White
Sensor CMOS
Operating Temperature -10°-60°
Alarm Action FTP Photo
Alarm Action Email Photo
Shell Material Metal
Power Supply With POE
is_customized No
Model Number DM13EV
Viewing Angle 75°
Optical Zoom NONE
Supported Mobile Systems iOS
Supported Mobile Systems Android
Rechargeable Battery NONE
Smart home platform Other
AI Functions Human Detection
IP Rating IP66
Special Features Email Alert , RTSP , FTP etc .
Material Metal housing, waterproof
Camera resolution 3mp:2304*1296,5mp:2592*1944
Type H.265 Dome camera
Night Vision 15pcs IR LEDs with 20m IR distance
Mobile system supported XMEye for iPhone and Android
Technology DC12V/POE 48V
Audio Function One-way Audio( Internal Microphone)
Sensor Size
DC 12V 3MP Camera
48V POE 3MP Camera
DC 12V 5MP Camera
48V POE 5MP Camera
Ships From
Czech Republic
China
Russian Federation
Focus
2.8mm
3.6mm
Warm Tips:
1.Ship from Russian/ Czech will be Received the Goods Faster.2.Czech Warehouse can Ship to Spain, Portugal, Germany, France, Austria, Belgium, ,Italy, Luxembourg, Netherlands, Czech Republic, Denmark, Poland, Slovenia, Slovakia, Bulgaria, Estonia, Finland, Hungary, Ireland, Lithuania, Latvia, Romania, Sweden Country.
Camera parameters
1) 3MP/5MP 12V IP Camera or 48V POE IP Camera For Optional2) 3.0MP 2304*1296P/5.0MP 2592*19443) With IR-CUT, support day/night switch4) 3mp 20fps/ 5mp 15fps5) DC 12V/ 48V PoE Optional6) 15pcs IR LED, 5-20m ir distance for night vision7) Multi-screen software and CMS8) Image processing: auto exposure(AE), auto white balance(AWB), auto gain control(AGC)9)Support motion detection, ONVIF10) Support visit by smart phone• Title OSD: Supports channel name, date, and video stream information overlay;• Privacy Mask: 4 configurable regions• Image Orientation: image flip and mirror• Auto Exposure Control (AEC); Auto White Balance (AWB); Auto Band Filter (ABF)• Auto Black Level Calibration (ABLC)• Network protocol: TCP/IP UDP RTP RTSP RTCP HTTP DNS DDNS DHCP FTP NTP PPPOE SMTP UPNP• ONVIF protocols: Support 2.0 Version• Remote View: IE 6.0 or above, Firefox, chrome ( old version please )• Network Interface: 10/100M BASE-TX,RJ-45 connector
General Specifications
• Operating Temperature: -20 °C ~ 50 °C (-4 °F ~ 122 °F)• Operating Humidity: 0% -85% RH• Power: DC 12V 2A(DC 12V Version ) or 48V PoE Switch ( PoE version )Notice : 48V PoE Version Has PoE Module Inside Which Can Work With DC PSU & 48V PoE Switch/Injector (NOT Included )*Please don't directly use 48V power for 12V or 48V camera, it will be damaged!The camera is not support zoom function!

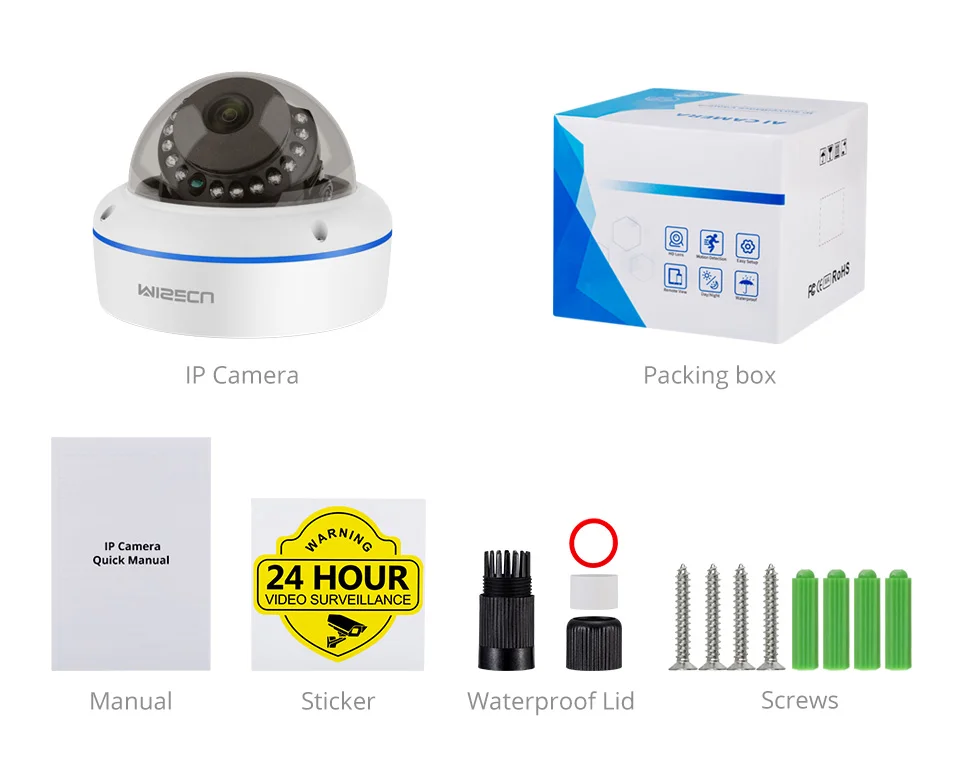

How we pack
1x 3.0MP/5.0MP IR HD IP Audio Camera/POE (no power supply)ScrewStrickerWaterproof Lid Manual
If you need power supply please click below to buy:

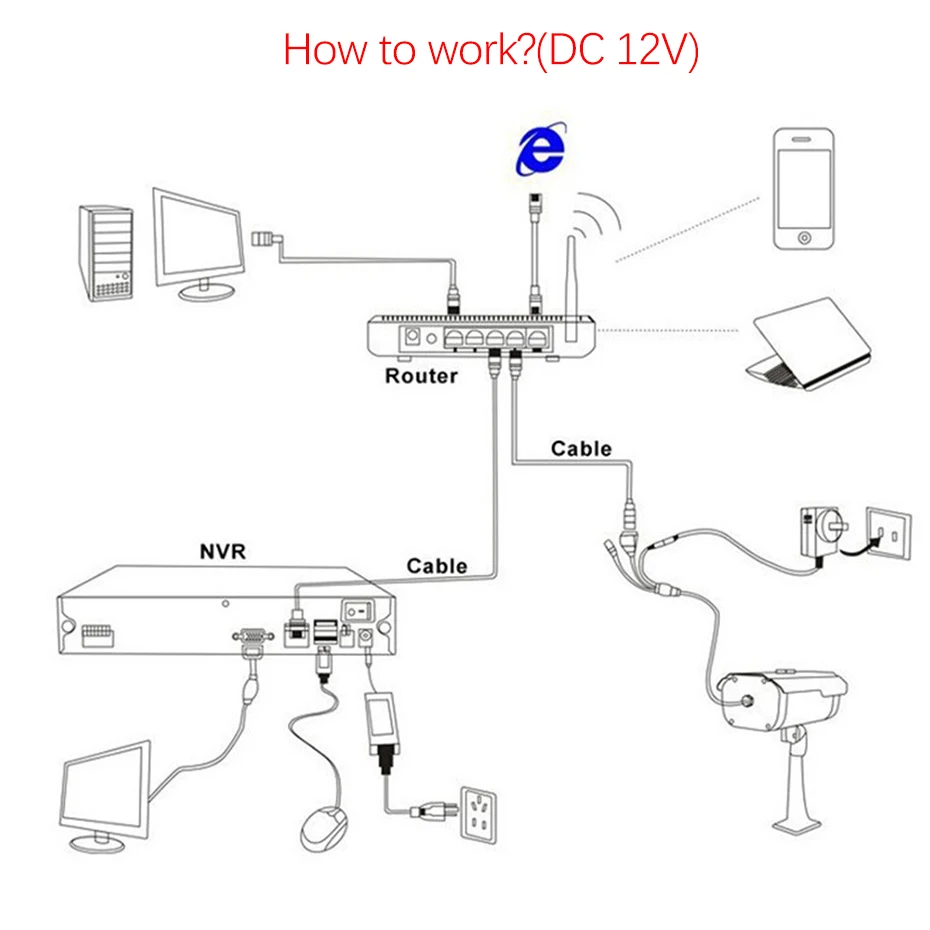

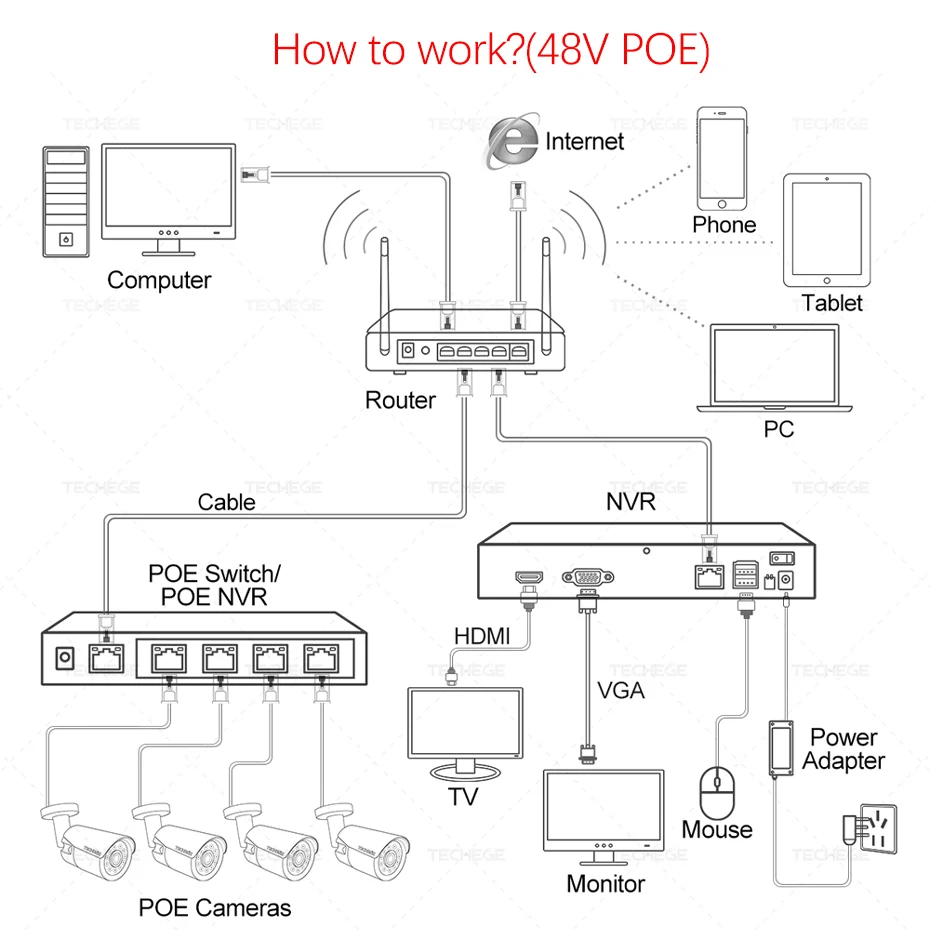

You may need NVR to work with:

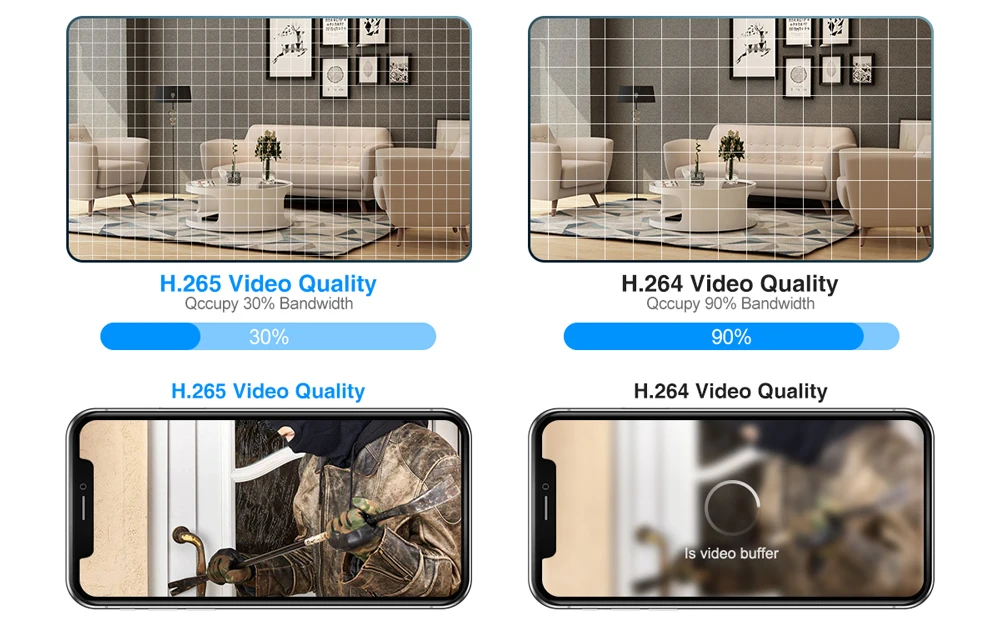

H.265 Video Compression
Better Video Quality, Less Video Storage.

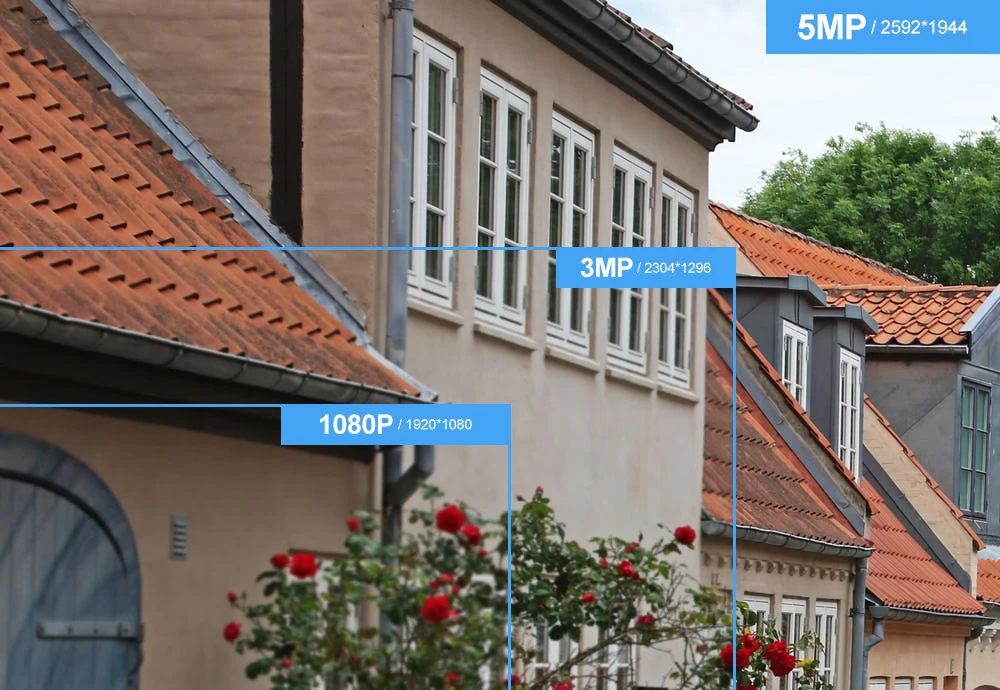

Experience with 5MP Super HD System
Ideal for home or business -5MP(2592 x 1944) offers exceptional Full HD resolution and quality enhancing efficiency and monitoring capabilities.
Audio Record Sound Camera
Built-in microphone records what people say, make it authentic with sound video recording

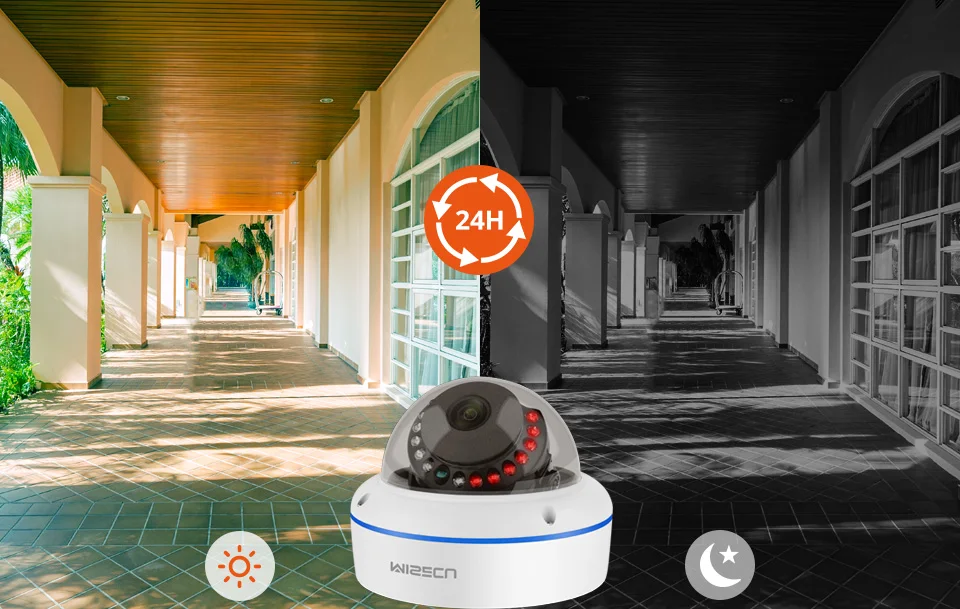

Day and Night Vision
Built in IR Cut with 15pcs IR LEDS,up to 20 meters distance
Support Motion Detection
Alert and Recording Setting the motion detection to block areas with constant movement send an email alert when motion activated

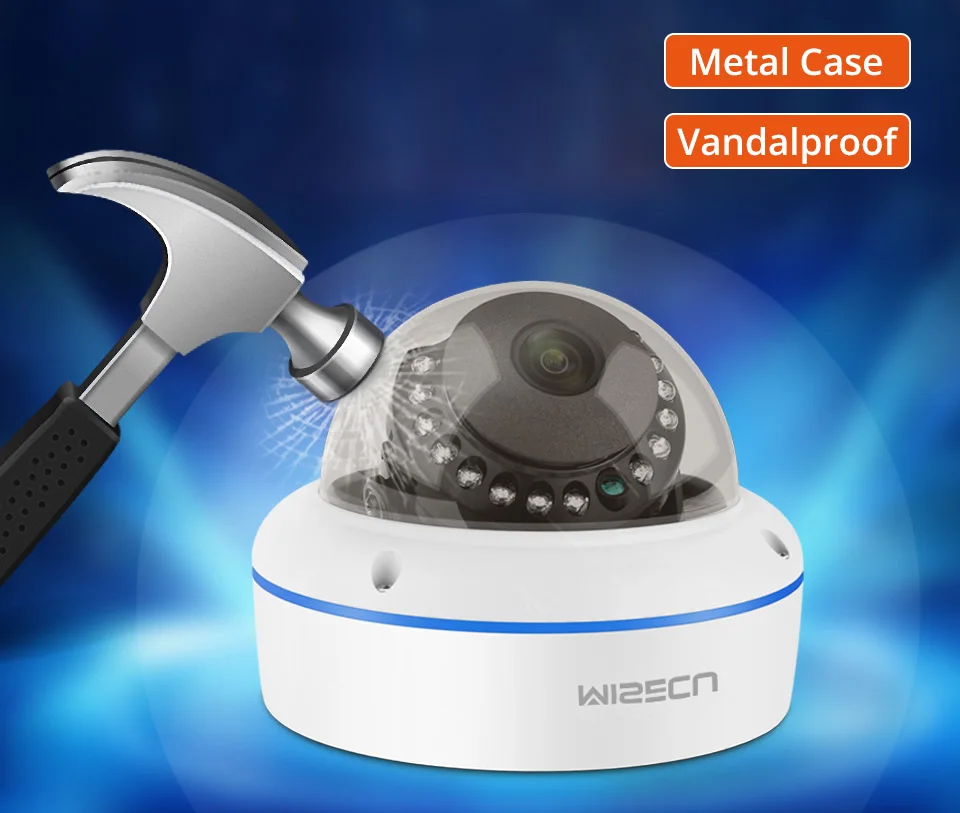

Vandalproof of Metal Housing

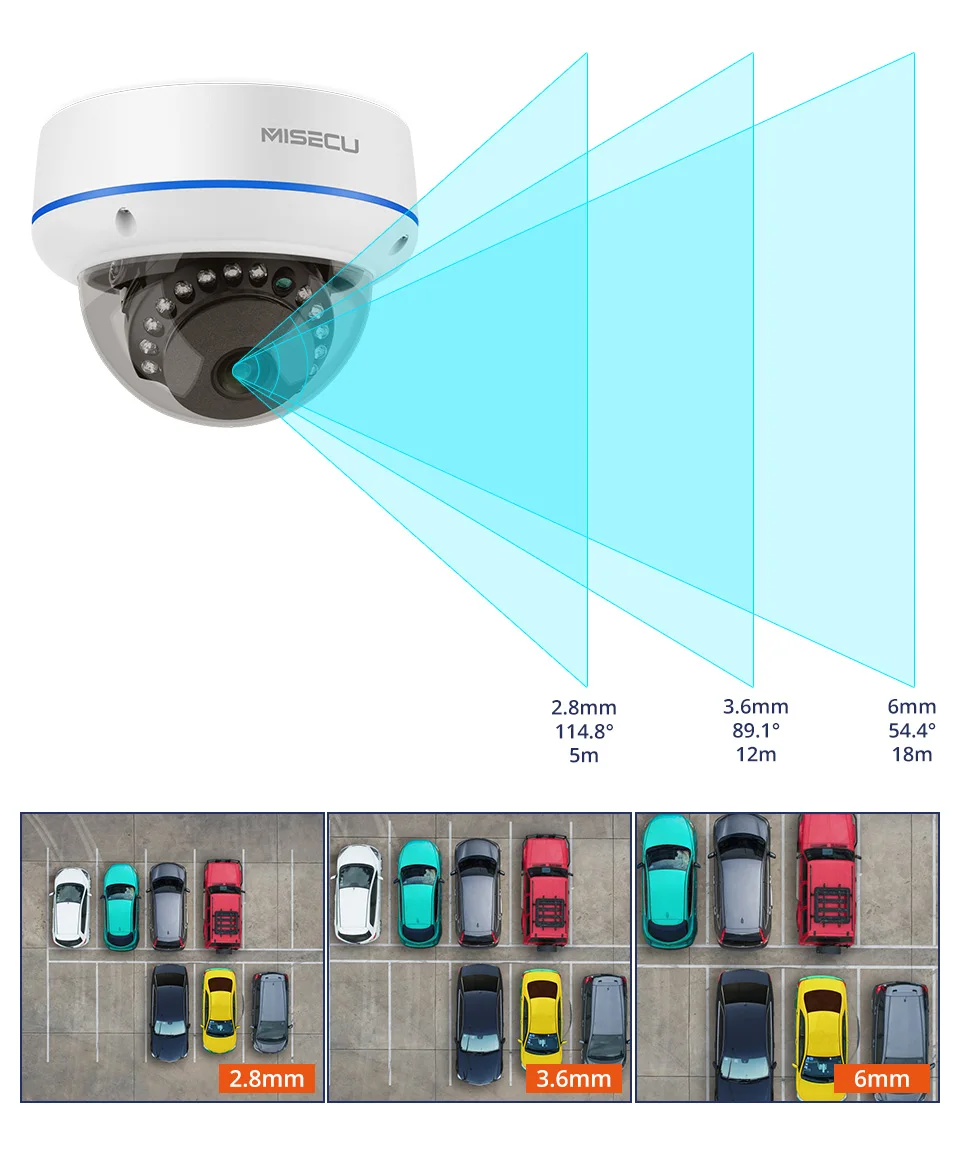

2.8mm Len Wide Angle
Locate incident Video with Smart Playback
You can freely playback to any specific moment on the timetable of your recordings and enjoy it on a beautiful intuitive interface

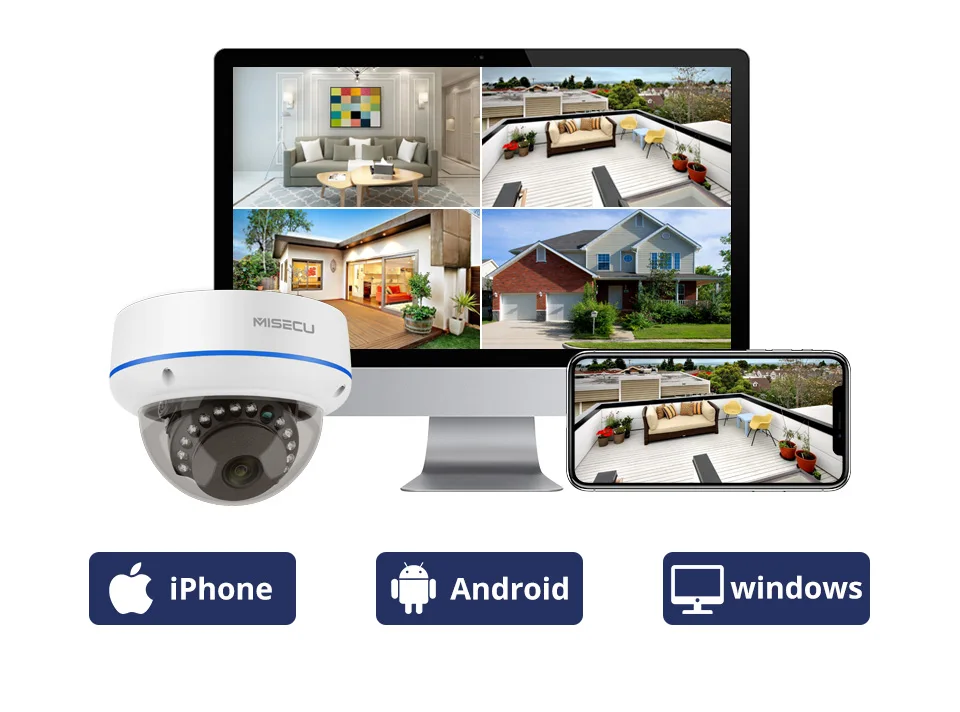

Plug and play
Easy remote access via PC,iPhone & Android mobile
Warm Note
To Enable the Audio Function , please check in CMS or IE: " Setting-System-Encode " , enable the audio

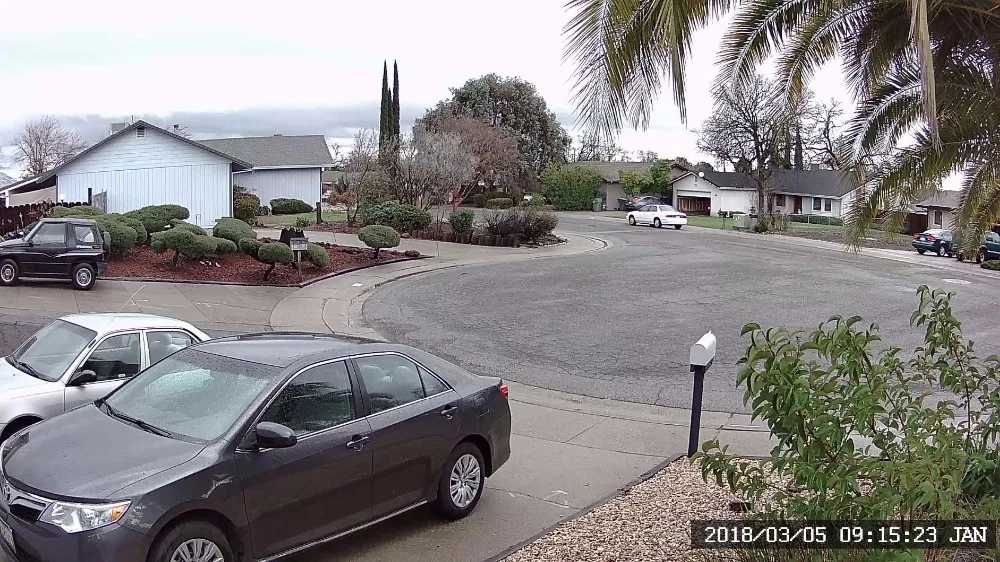

Real Picture From Customer
You may need wifi camera system:
