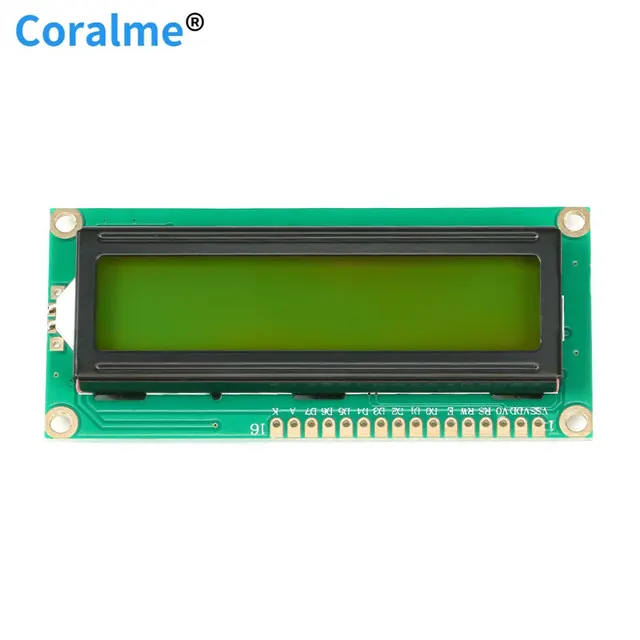

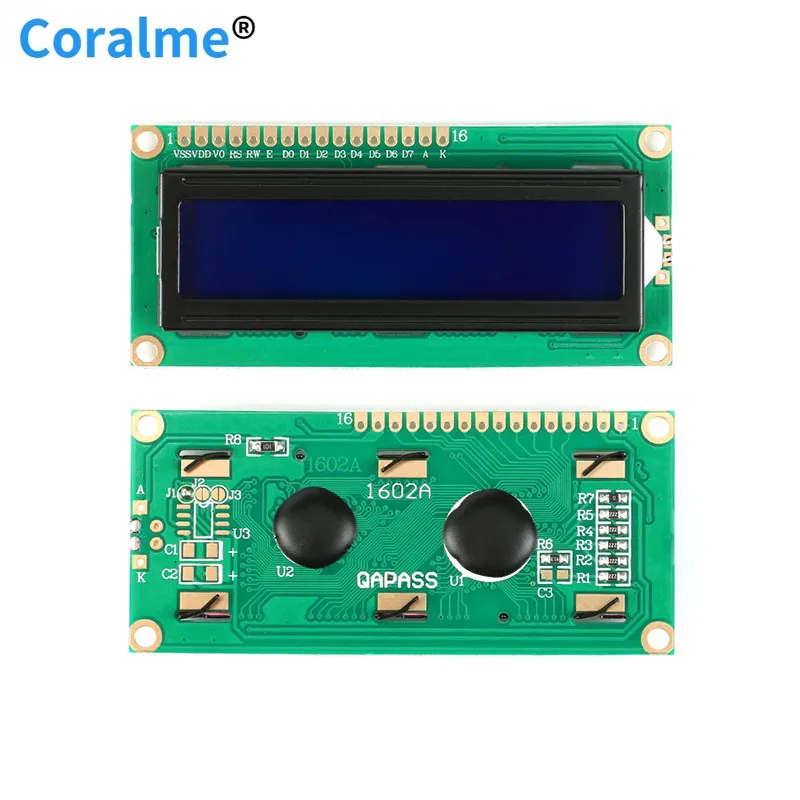

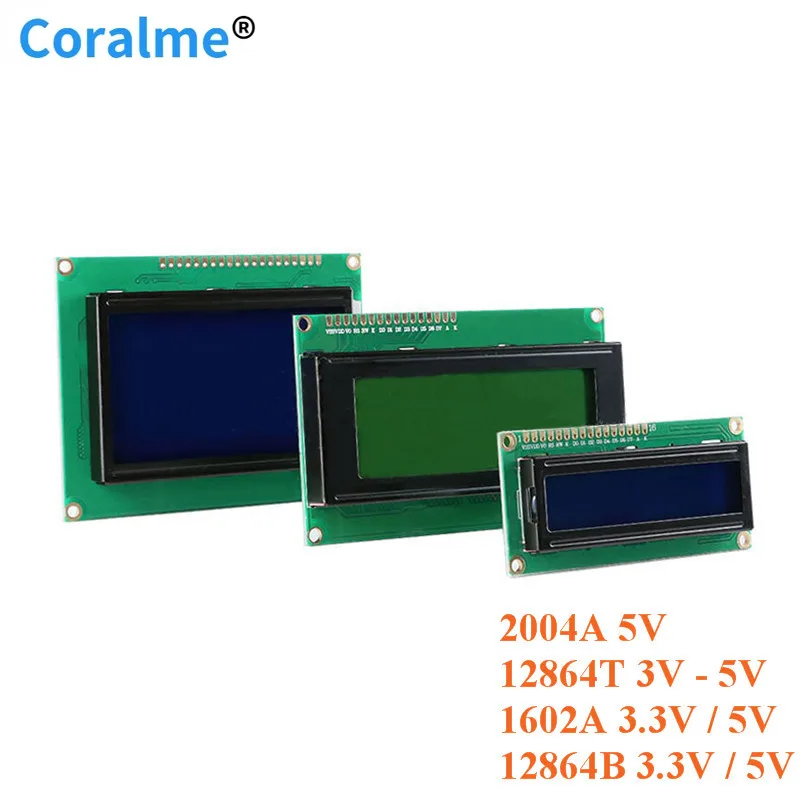

LCD1602 Module Blue/Yellow/green Screen 20* 4.5 V LCD/LCM Display PCF8574T PCF8574 IIC I2C Interface For 5V Arduino1602A Blue/ Yellow-Green
The LCD1602A character type liquid crystal display module is a dot matrix liquid crystal display module specifically for displaying letters, numerals, symbols, and the like. It is divided into 4-bit and 8-bit data transmission methods. Provides a 5x7 dot matrix + cursor display mode. A display data buffer DDRAM, a character generator CGROM, and a character generator CGRAM are provided, and CGRAM can be used to store font data of up to eight 5x8 dot matrix graphic characters defined by itself. Provides a wealth of command settings: clear display; cursor back to origin; display on / off; cursor on / off; display character flicker; cursor shift; display shift element. An internal power-on automatic reset circuit is provided. When the external power supply voltage exceeds +4.5V, the module is automatically initialized and the module is set to the default display working state.LCD1602A is an environmentally friendly liquid crystal display module.12864B blue/yellow-green

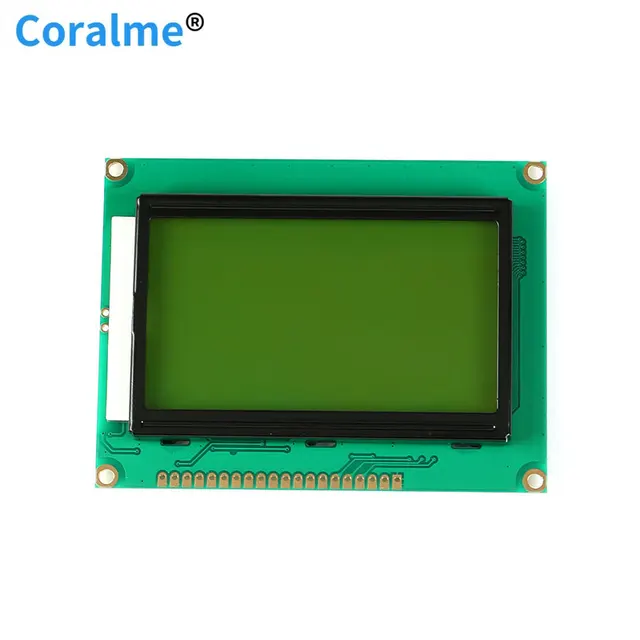

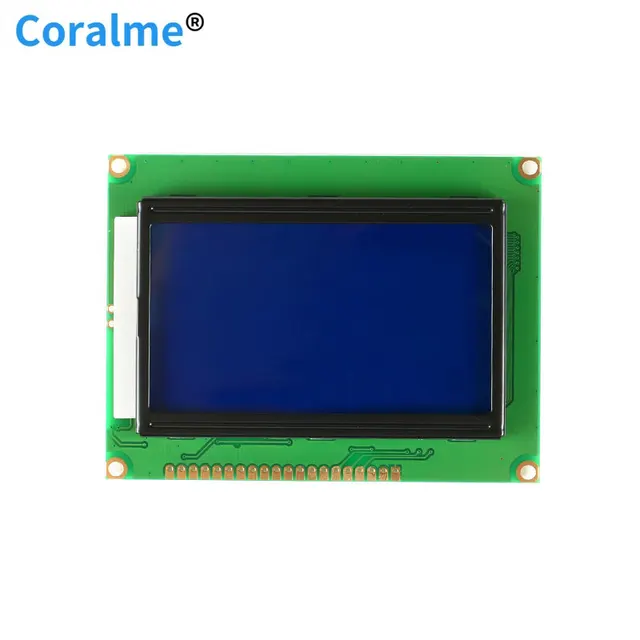

12864 Chinese kanji graphic dot matrix liquid crystal display module, can display Chinese characters and graphics, built-in 8192 Chinese characters (16X16 dot matrix), 128 characters (8X16 dot matrix) and 64X256 dot matrix display RAM (GDRAM).Main technical parameters and display characteristics:Power supply: VDD 3.3V~+5V (built-in boost circuit, no negative pressure required);
Display content: 128 columns x 64 rows
Display color: yellow green / blue screen
Display angle: 6: 00 hours direct view
LCD type: STN
Interface with MCU: 8-bit or 4-bit parallel/3-bit serial
Configuring LED backlighting
A variety of software features: cursor display, screen shift, custom characters, sleep mode, etc.
Dimensions: 93x70x 12.5mm
Sight Size: 73 x 39mm
Parameter:
Logic working voltage (Vdd): +4.8~+5.2V
LCD drive voltage (Vdd-Vo): +3.0~ +5.0V
Working temperature (Ta): -20~+70C (wide temperature)
Storage temperature (Tsto): -30~+ 80C (wide temperature)
Operating current (except backlight): 1.7mA (max)
Working current (backlight): 24.0mA (max)

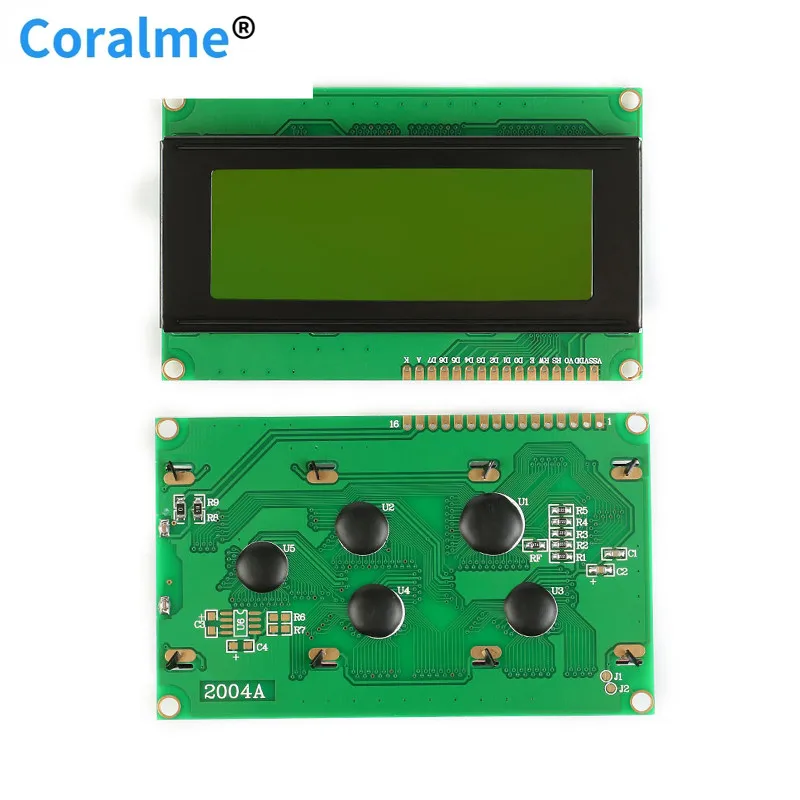

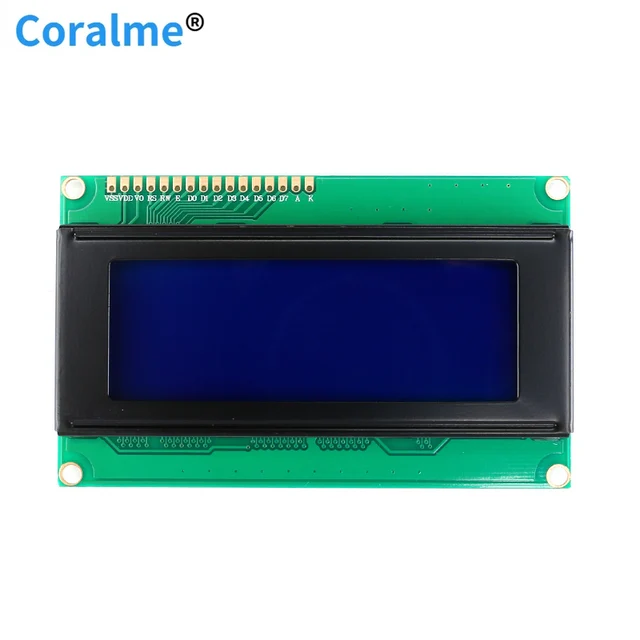

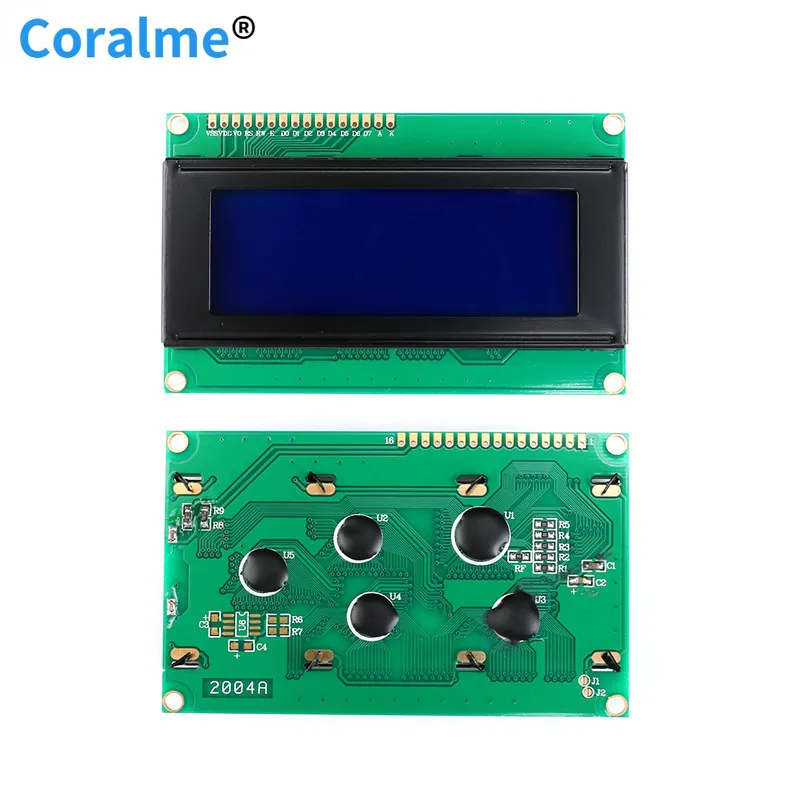

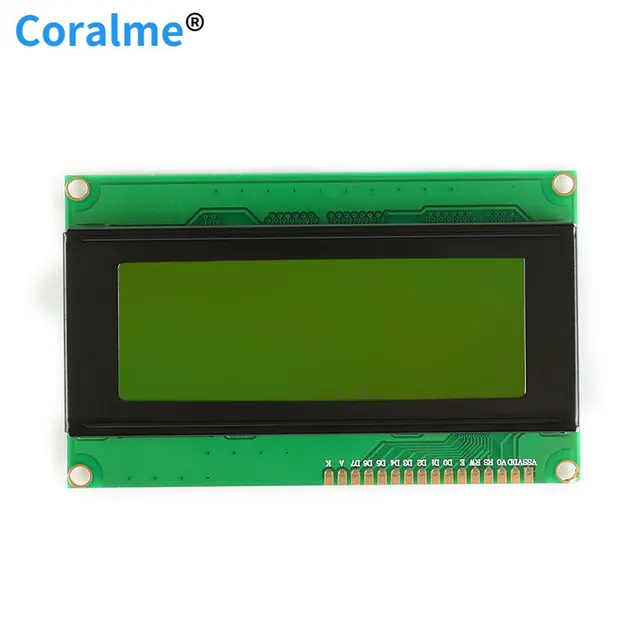

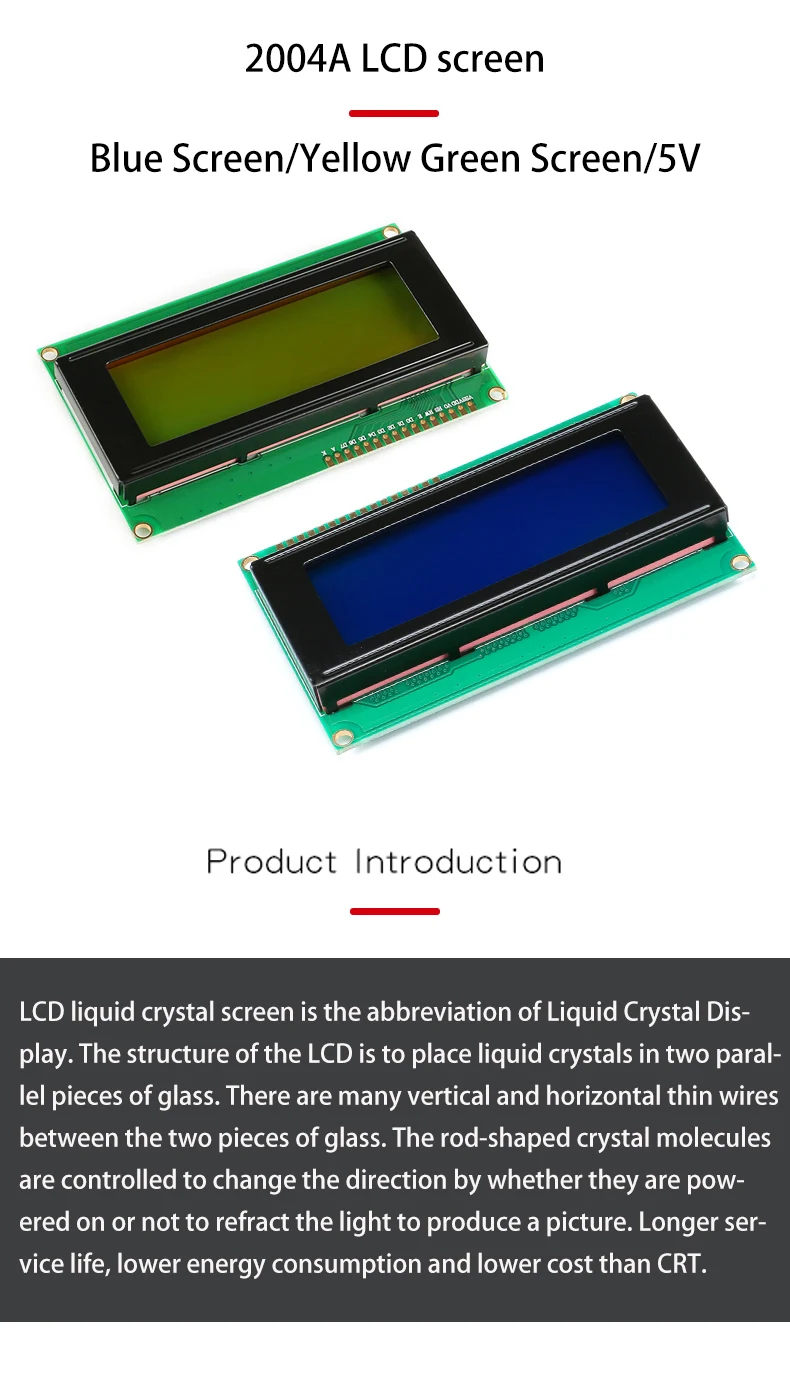

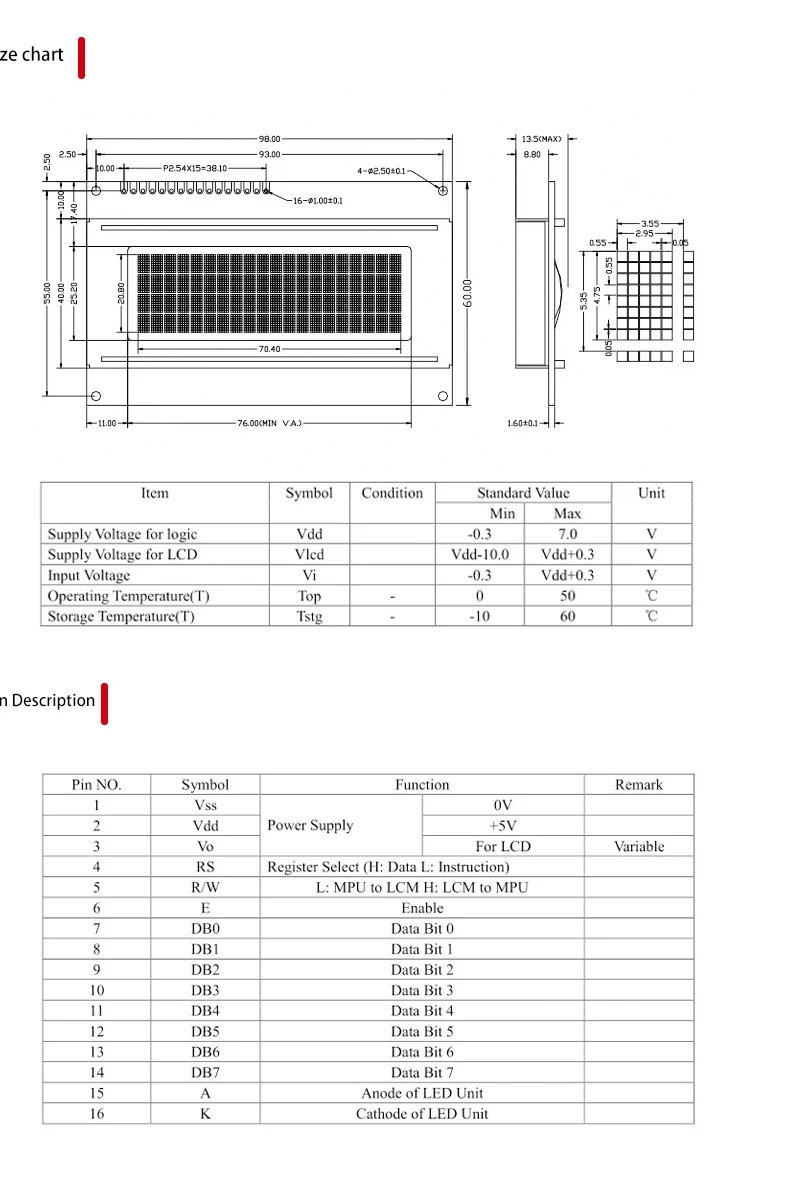

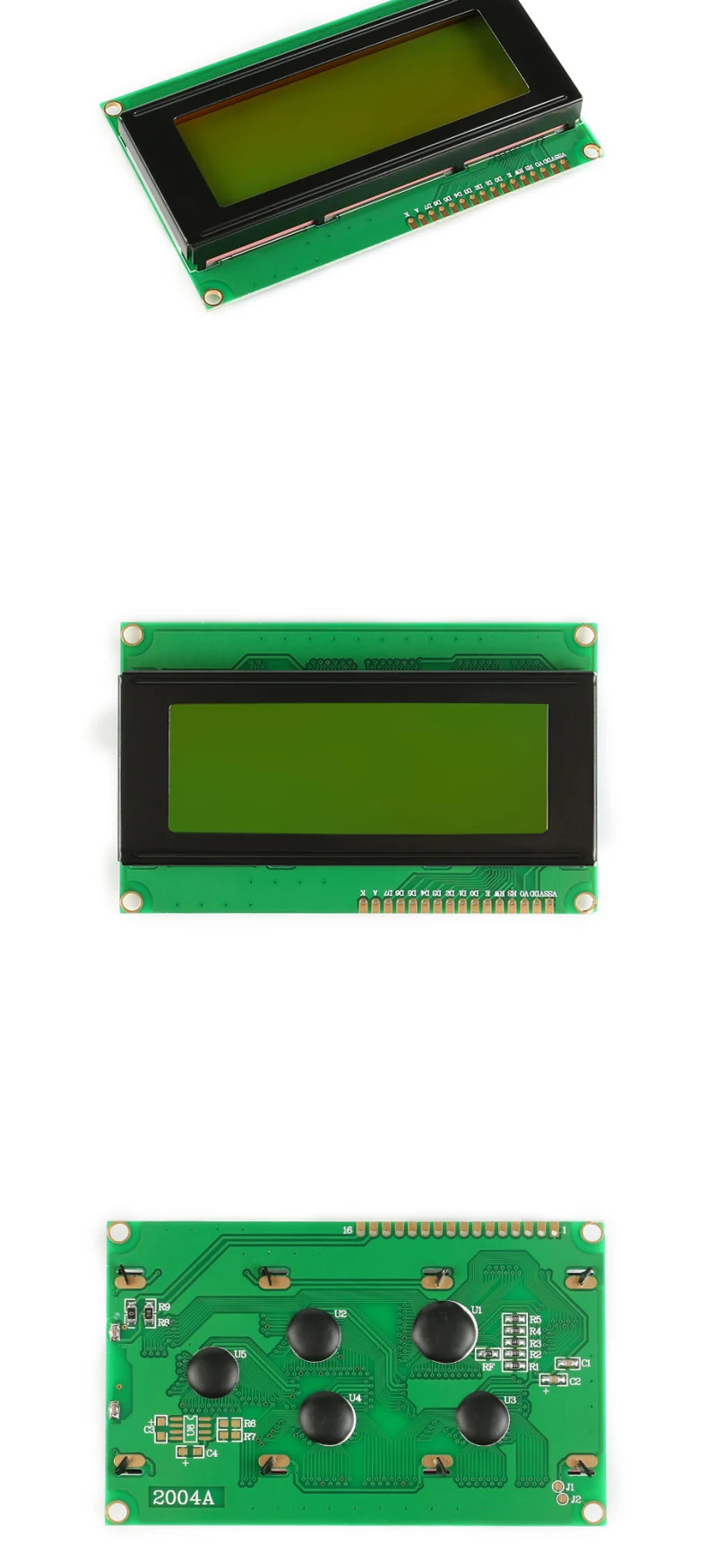

2004 Blue / Yellow-Green
Main technical parameters and display characteristics:Power supply: VDD 5V
Display color: yellow green / blue screen
Display angle: 6: 00 hours direct LCD type: STN
Interface with MCU: 8-bit or 4-bit parallel/3-bit serial configuration LED backlight
A variety of software features: cursor display, screen shift, custom characters, sleep mode, etc.
12864T Blue
The 12864T module has an internal boost circuit that supports 3V to 5.5V. The default 4.5V voltage contrast display is the best. If the voltage is 5V or 3V and other voltages, please change the VR1 adjustable potentiometer on the back. The display effect is at least 3V and up to 5.5V. Since the module supports multiple voltages, and the current limiting resistor R12 R13 that controls the LED backlight is fixed at 68 ohms, the LED gets no voltage at 3V rating in the case of 3V-4V, and the LED backlight brightness does not have a normal 3.3V backlight. The current limiting resistor has a high brightness of 6.8 ohms, which is normal. 4V or more is not affected by resistanceSerial port selection, the default is serial port, and the parallel port is common. When the serial port is selected, it can be completed by selecting high and low levels. The second type can also be short-circuited to the serial port by the silk screen S on the back of the LCD screen, and the P point is short-circuited to the parallel port.Since the third pin V0 has been disconnected by the JP2 jump point, if it needs to be adjusted by an external adjustable resistor, connect the JP2 jumper.The LCD12864 is mainly composed of an LCD display (LCD PANEL), a controller, a driver, and a bias generating circuit.
The controller is mainly composed of an instruction register IR, a data register DR, a busy flag BF, an address counter AC, a display buffer DDRAM, a character generator CGROM, a user-defined character generator CGRAM, and a timing generation circuit.Parameter:The best working voltage of the module is: 3-5V;
Working temperature: 0 deg C ~ 50 deg C
