STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

LCD Modules>>>Electronic Components & Supplies

Brand Name STONE

Origin CN(Origin)

Display Mode 500:1

Model Number STVC070WT-01

is_customized Yes

Type TFT

is_customized Yes

Resolution 800x480

CPU Cortex M4

Brightness 400

Interface RS232/RS485/TTL/USB

Viewing Area(mm) 154.1x85.9

Voltage(V) 6-35

LCD Class A

Power Consumption(W) 2.6

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry ControlProduct DescriptionProduct DescriptionSTONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

STVC070WT-01

The STVC070WT-01 is the intelligent TFT LCD Module withUART PORTwhich can be controlled byANY MCUvia SimplePowerful Command Set. So it can be used as colourful TFT Display & Touch controller in various electronic equipment.

The STVC070WT-01 include CPU , TFT Driver,Flash Memory,UART port,power supply and so on,the important is that it  has the ready-madeBasic Control ProgramandPowerful Design Software,so that it can reduce much development time and cost for engineers.

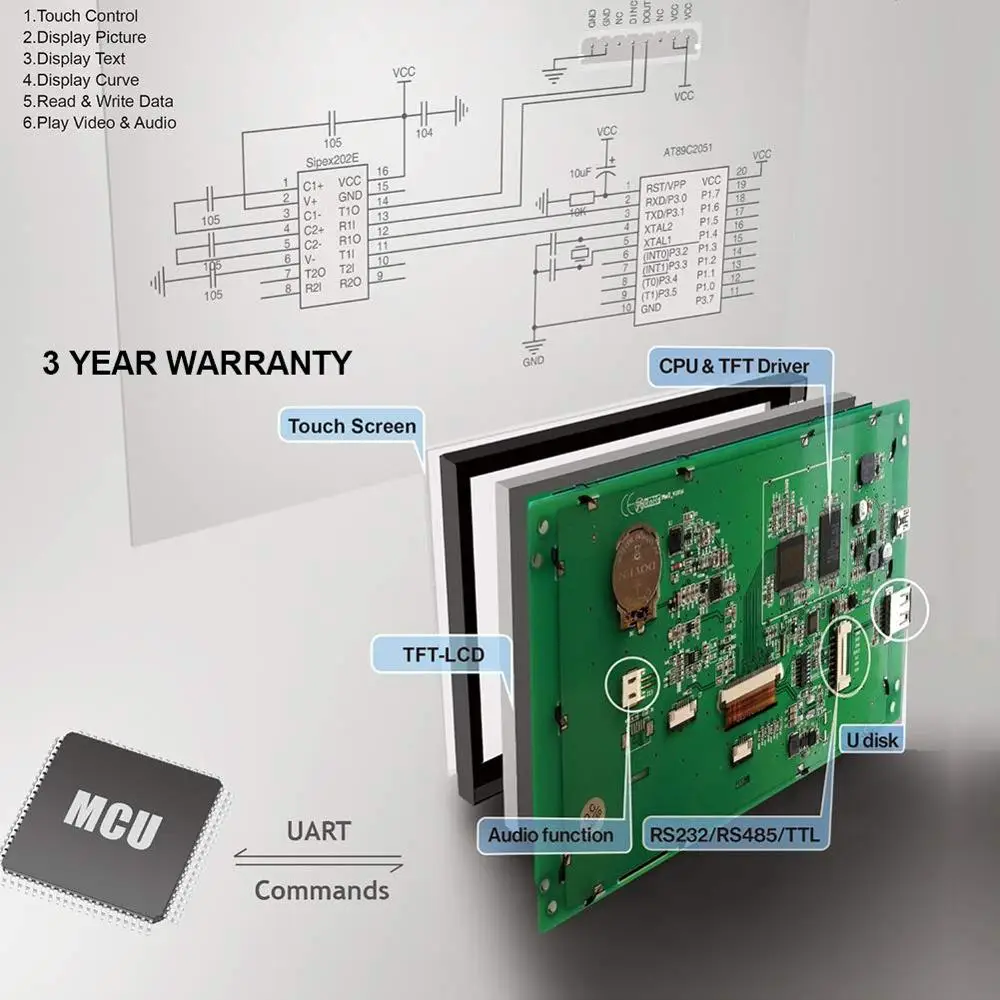

Working Principle

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

Software Operation

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

1.Design a group of individual Graphic User Interface!

2.Connection by RS232/RS485/TTL/Level Directly!

3.Write the C or C++language program for ANY MCU to control the TFT-LCD Module via Simple & Powerful Hex Command Set!

Function

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

Product Parameters

Physical Parameter

 Model

 STVC070WT-01

 Size (Inch)

 7.0"

 Resolution

800×RGB×480

 Color

 65536 colors (16 bit)

Viewing Area

 154.1mm×85.9mm

 Pixel Spacing

 0.1905 mm × 0.0635 mm(H×V)

 Overall Dimension

186.3 mm × 105.4 mm × 15.3 mm(N)/16.9 mm(T)

 Net Weight

 250 g(N)/ 325 g(T)

 TFT Panel

 A+ Class Industry Panel

 Touch Screen

 Industry Level 4 wire resistance Or without touch screen is optional

Backlight Parameter

 Backlight Type

 LED

Brightness

400 cd/m2(Brightness can be adjustable in 100 levels.)

 Contrast

 500:1

 Backlight life

 50,000 hours

 Viewing Angle

 70°/ 70°/ 50°/ 60° (L/R/U/D)

 Working Temperature

 -20°C ~ +70°C

 Working Humidity

 55°C, 85%

 Storage Temperature

 -30°C ~ +85°C

 Screen Mode

 Digital

Performance Parameter

 CPU

 CortexM4

 LCD Controller

 CPLD EPM240

 Refresh Rate

 200MHz

 Picture Switching Speed

 40 ms/picture (25 pictures/s)

 Flash Memory

 Standard 128m, Extension 1GB

 Memory Amount for picture

 According to the capability of the image, Suggest "JPG" format

 Interface

 RS232/RS485/ TTL /USBInterface

 Pictures downloading

 USB2.0 (12Mbps) & U storage Disk downloading

 Voltage Range

 DC6.0V ~ 35V (typical value: 12V)

 Power

 2.6W

Test Report

 MTBF

 4,250,000H

 Working Temperature

 -20°C ~ +70°C

 Air Humidity

 60°C, 90%

 Continuous Vibration Testing

 10-55Hz, 1.5mm, 10G

 Impact Acceleration Testing

 6ms, 100G

 ESD Testing

 10KV

 Radiation Reliability Testing

 44W

Main Size of TFT LCD Module

 Size

 Resolution

 3.5''

320*240;320*480

 4.3''

480*272

 5''

480*272;640*480;800*480

 5.6''

640*480

 5.7''

640*480

 7''

800*480;800*600;1024*600

 8''

800*600;1024*768

 9.7''

1024*768

 10.1''

1024*600

 10.4''

800*600

 12.1''

1024*768

 15.1''

1024*768

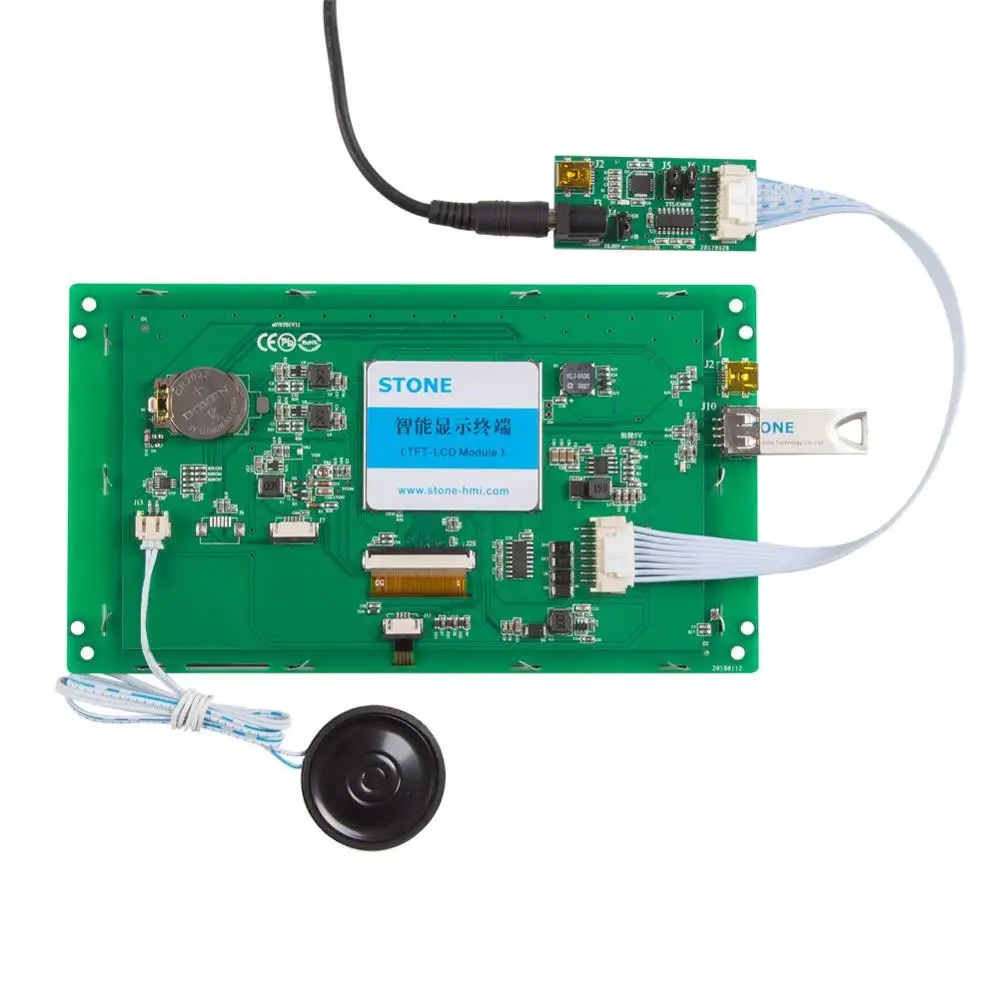

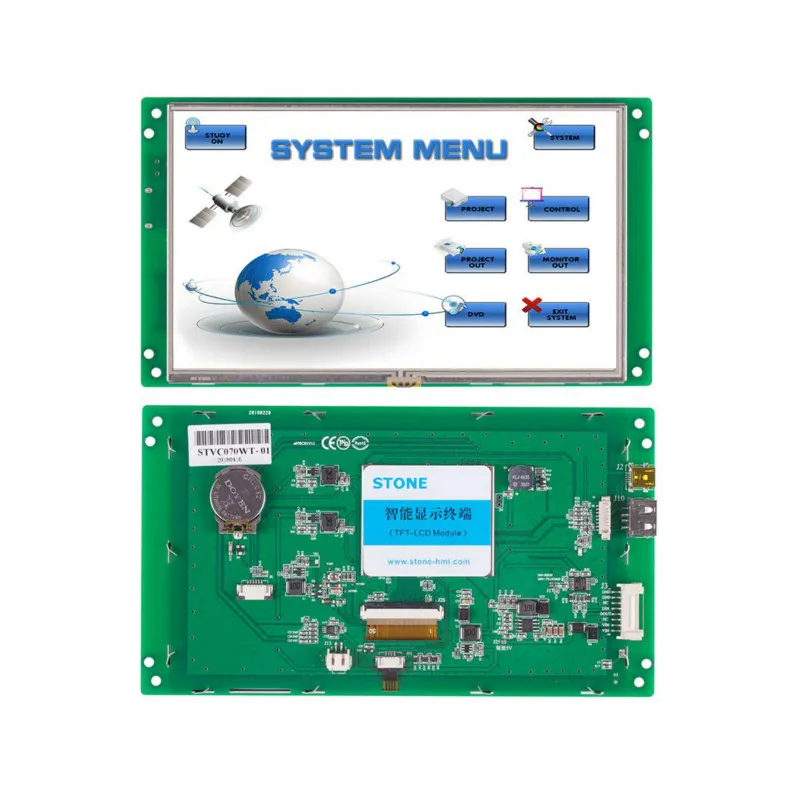

Product PictureProduct Picture

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

characteristics

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

Why STONE TFT LCD Module Is Intelligent?

Item

Hardware

Software

Operation

Comparison

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

TFT Panel & Driver & Memory Flash & UART/USB Port &5-40V Power Supply

GUI Design Software & Hex Command Set

Easy to operate,use simple instruction(Hex code)to control TFT module by any junior engineer

1.Easy!Pwerfull!Saving!

2.Plug and Play.

3.Working fast.

4.Industrial class.

5.Components from Well-known Brands.

PC

Operation System

Develop application programs by professional software engineer.

1.Need professional operation.

2.Long startup time. 3.Working slowly.

4.High cost.

Panel&Driver

None

Write plenty of control programs for TFT module by professional engineer.

1.Need tedious & Professional work.

2.Cost lots of development time.

3.Unstable workin system.

4.Poor quality components.

Just panel

None

1.Develop hardware and driver.2.Write programs by professional engineer.

1.Need tedious &Professional work.

2.Cost even more development time. 3.Unstable working system.

4.Cheap imitated components.

Application

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

Our Services

  our services

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

    1.  3-YEAR Warranty Period

         Replace by a brand-new Unconditionally

    2.  customizable service.

         a. Customize TFT-LCD Module according to customer’s requipment .         b. Develop the customization function.         c. Extend the flash memory to 1GB or 2GB.         d. Assign the interface to RS232, RS485 or TTL.

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

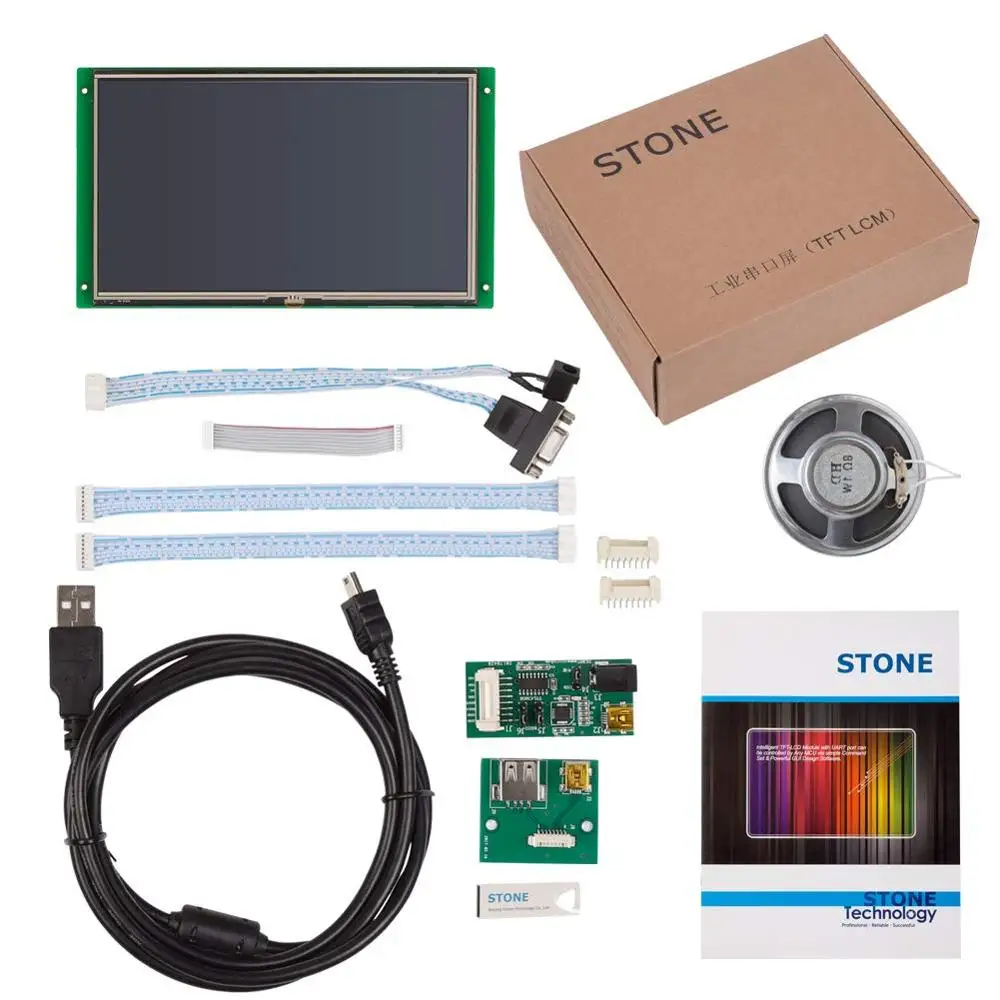

Packaging & Shipping

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

STONE 7 inch HMI Smart TFT LCD Module with Touch Screen + Software + Program for Industry Control

FAQ

1.    Does your product include program software?A:  Yes. The free graphic user interface software is included.2.    How do you program the display?A:  We don’t have to write any code for the display or program the driver. Our display set include CPU and memory, you can directly use .jpg file to generate a GUI and use it to send HEX command set to communicate with your micro control unit.3.    What kind of interface does this display have?A:  The display set is using UART serial port (RS232/RS485/TTL) to communicate with any kind of MCU unit by HEX command sets.4.    Can the display play video/audio files?A:  Yes. The basic display set have 128 MB memory space and you can storage any video/audio file in it. The display can play the files directly.5.    Are you using resistive touch or capacitive touch display?A:  We have resistive touch, capacitive touch and non-touch display available.6.    What else do I need to use this display set?A:  We provide the cable, converter, software and manual. You just need a PC with windows system, and a 12V DC power supply to work with the display.7.    I don’t know how to design the GUI or communicate with my device. Where can I get help?A:  We provide a specific English manual and development guide for you. You can get any knowledge required for the developing. You can also check our YouTube channel for the instruction video, or directly contact with our sales to get some assistance.8.    What if the display was broken or failed?A:  We provide 3 years unconditional warranty for our I-serial and A serial display, 1 year unconditional warranty for the C-serial display. You can get a free replacement if your display was damaged or failed.
