PCB & PCBA>>>Electronic Components & Supplies
Brand Name KY WIN ROBOT
Origin CN(Origin)
Base Material FR4
is_customized Yes
Min. Line Width 2.54mm
Surface Finishing FR4
Board Thickness 1.6mm
Model Number Prototype PCB Board
Min. Line Spacing 2.54mm
Copper Thickness 1
Min. Hole Size 1

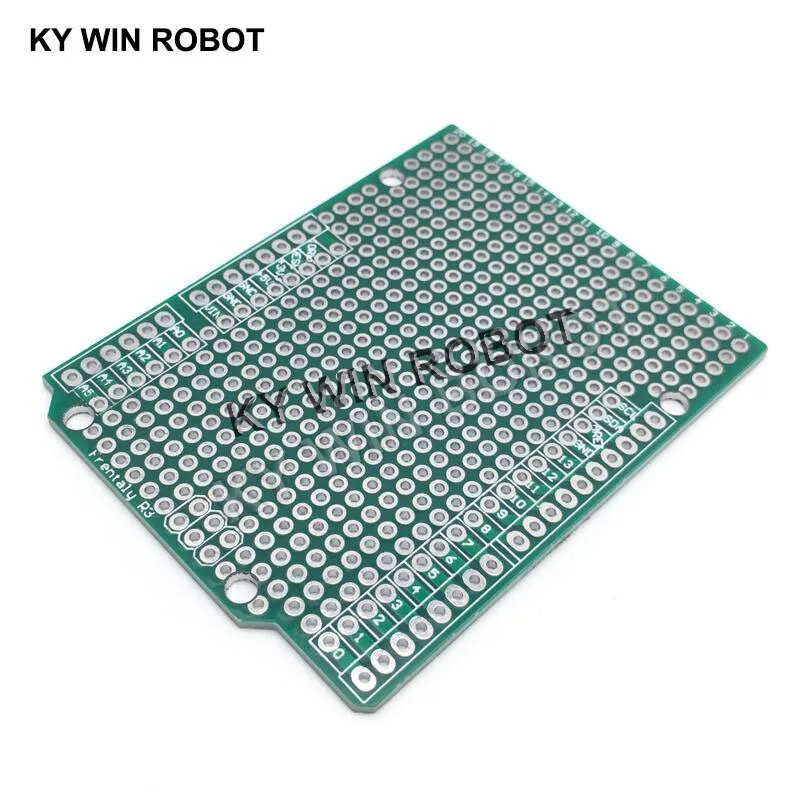

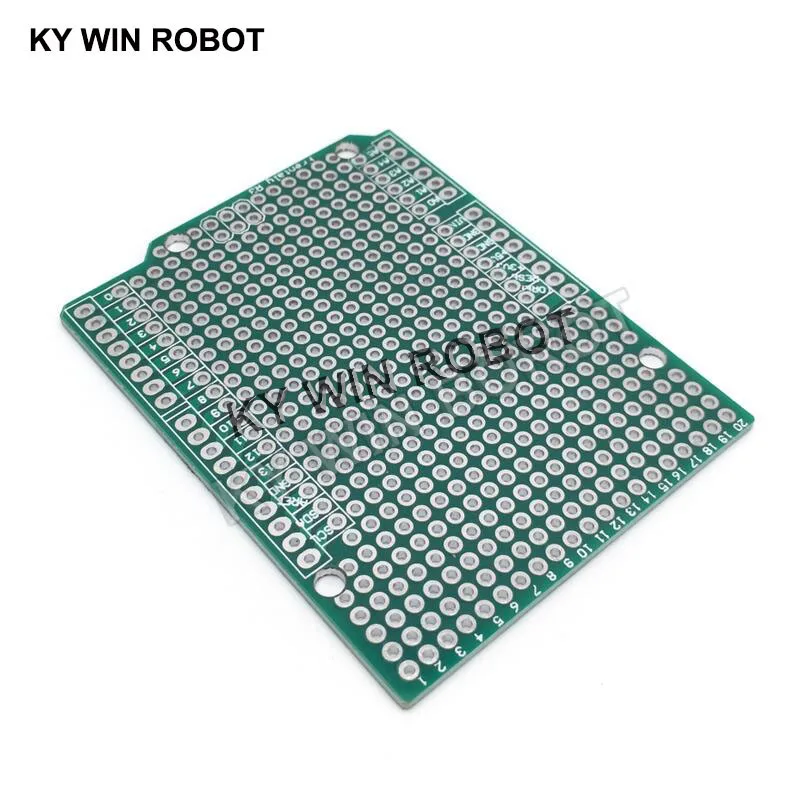

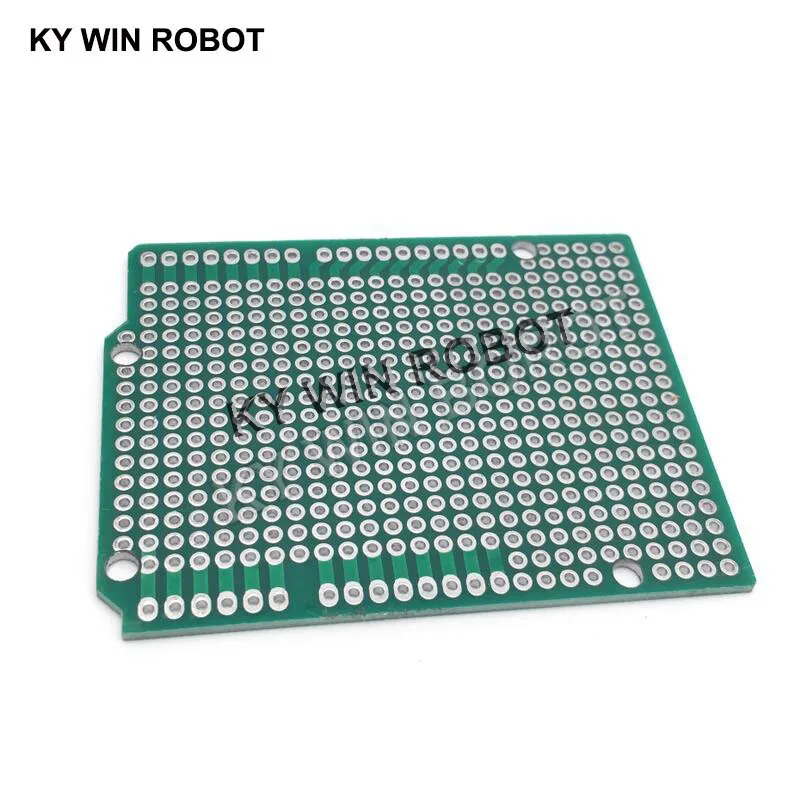

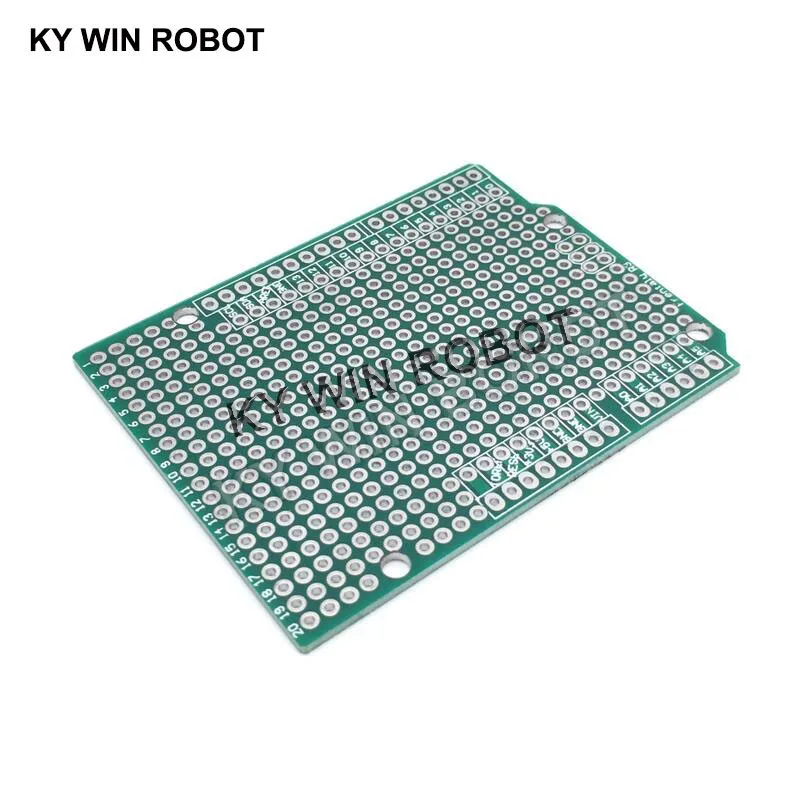

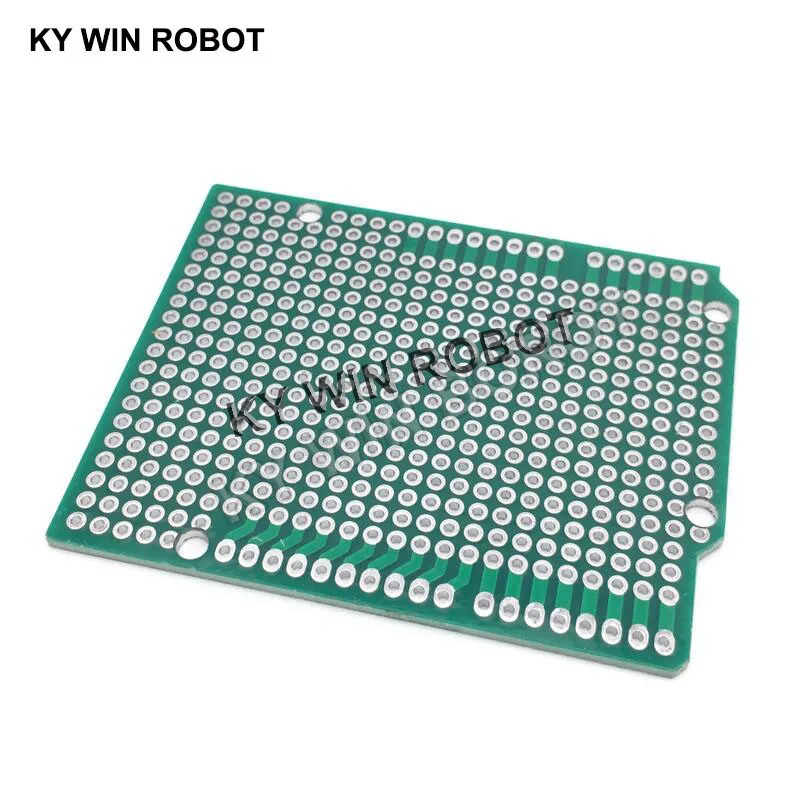

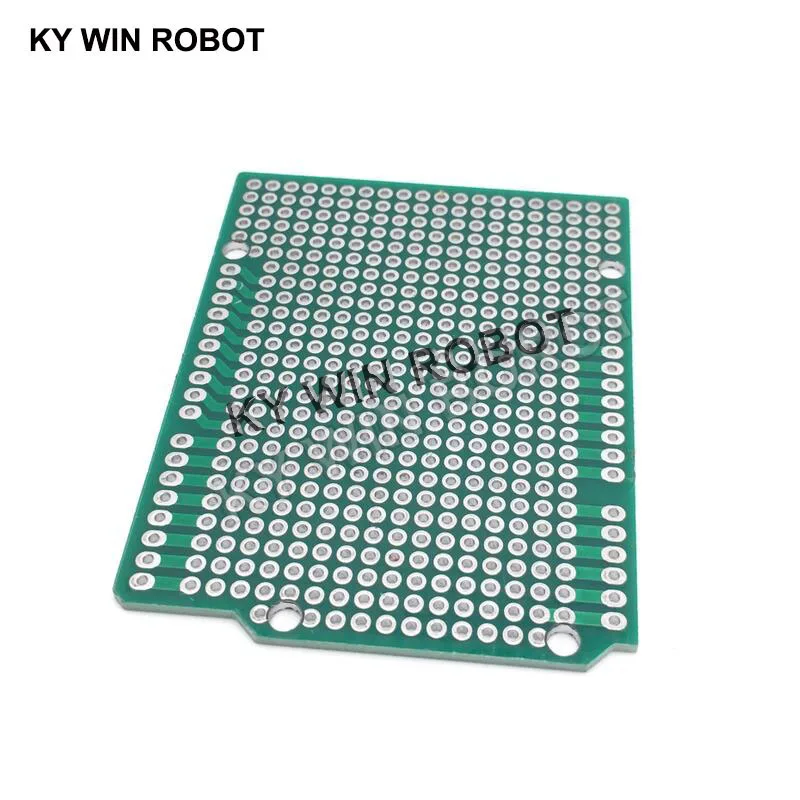

100% brand new and high qualityPCB Dimension: 68.58mm x 53.34mm / 2.7" x 2.1"PCB Thickness: 1.6mmMaterial: high quality FR-4 glass fiber PCB.All holes are plated throughTop and bottom side are identical copper layers. Pads pitch:In the white frame range: 2.00mm / 0.079", hole diameter 0.8mm / 0.031".Other pads pitch: 2.54mm / 0.1", hole diameter 0.9mm / 0.035".you need to weld the pins by yourself.No retail package Package included:1 x Prototype PCB for Arduino UNO R3 Shield Board
